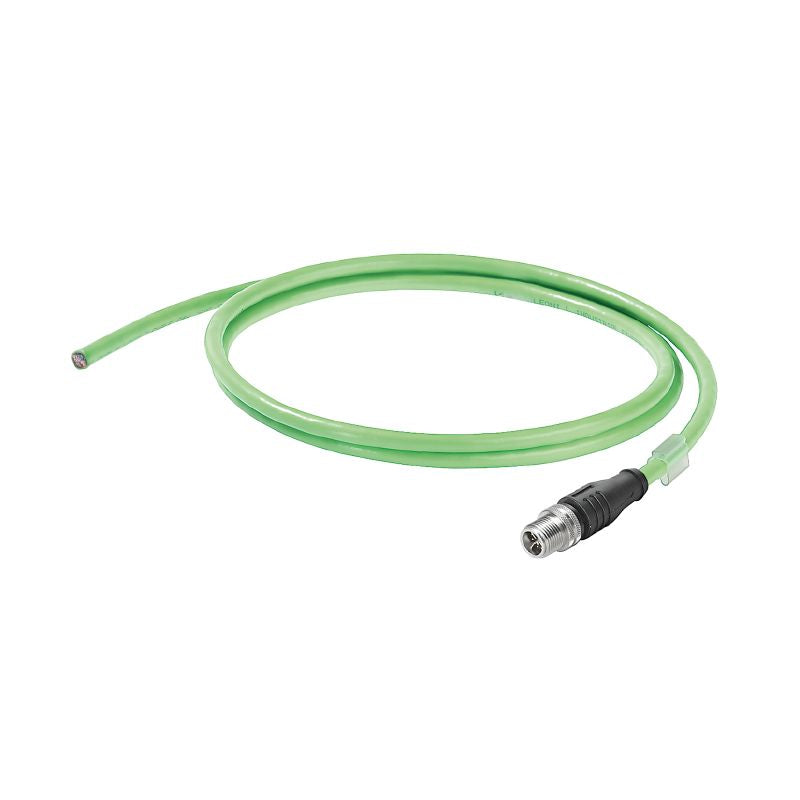

1463650020 - 2m IP67 M12 X-Type System Cable, Cat.6A Connector

SKU: SKU: 1463650020 Download PDF

Select a Variant:

1463650020 - 2m IP67 M12 X-Type System Cable, Cat.6A Connector

SET THE QTY:

Now $60.85 Web pricing policy

~~BEFORE $0.00~~ Now $60.85 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience reliable connectivity with this 2-meter system cable, equipped with an M12 X-type straight male connector and built to IP 67 standards Complying with Cat6 A / Class E A specifications as outlined in ISO/IEC 11801:2010, it features a sturdy PUR sheath for enhanced durability This versatile cable is perfect for a wide range of applications, ensuring high performance and dependability.

Features and Benefits:

•RoHS compliant with exemptions.

•Impervious to smoke.

•Halogen-free.

•Very good abrasion resistance.

•Free conductor end on the right side.

Specifications:

Length	2 m
Storage temperature	-40 °C to 80 °C
Operating temperature	-40 °C to 80 °C
Installation temperature	-20 °C to 60 °C
Category	Cat.6 A / Class E A (ISO/IEC 11801 2010)
Characteristic impedance	100 ± 5 Ω at 100 MHz
Loop resistance	290 Ω/km
Signal propagation time	5.2 ns/m
Test voltage: wire-wire-shield	700 V rms, 50 Hz, 1 min
Transmission rate	10 Gbit/s
Sheath diameter, max.	6.7 mm
Sheath diameter, min.	6.1 mm
Number of wires	8
Copper diameter	0.48 µm
Insulation cross-section	0.98 mm
Copper wiring insulation	PE
Shielding	S/FTP
Insulation	PE

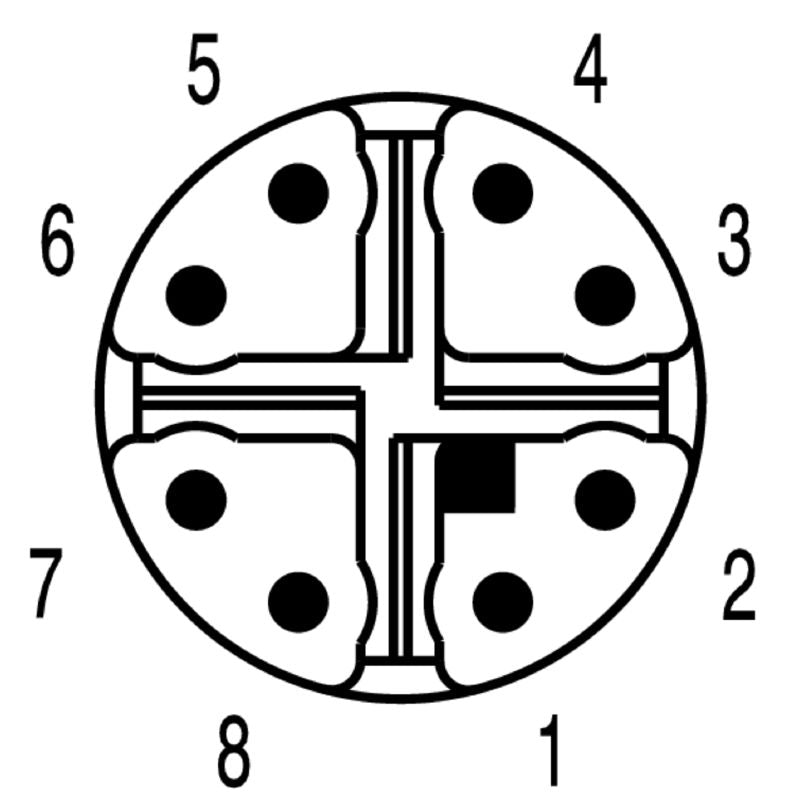

Plug type	M12, X-coded, IP67, male contact, straight, plastic, shielded
