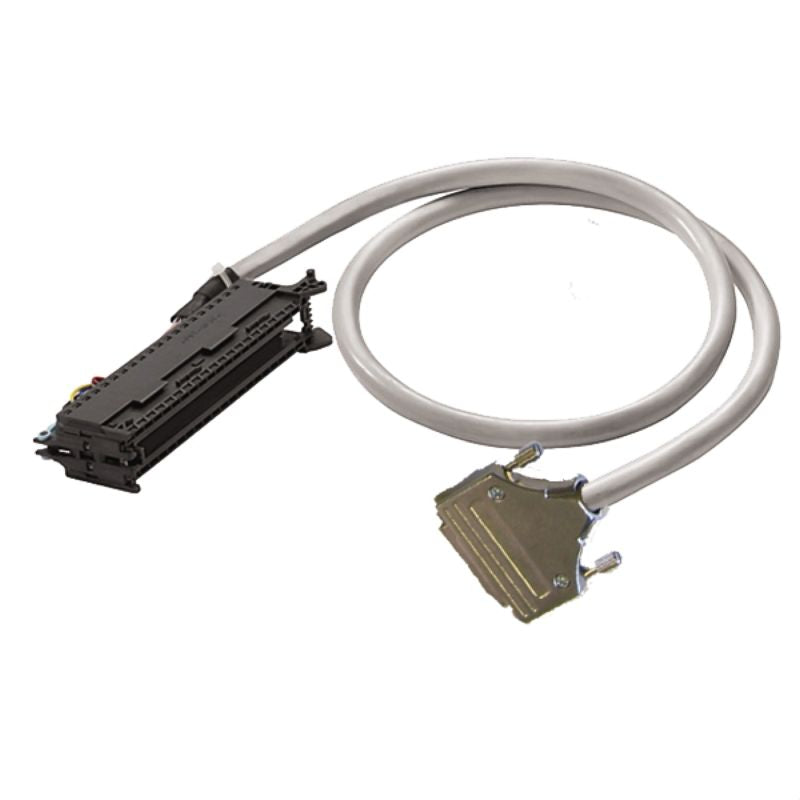

1462160015 - 1.5m PVC Pre-Assembled Cable with SIEMENS Connector

1462160015 - 1.5m PVC Pre-Assembled Cable with SIEMENS Connector

SKU: 1462160015 Download PDF

Variant:
  • 1462160015 - 1.5m PVC Pre-Assembled Cable with SIEMENS Connector
Now $236.48
BEFORE   $0.00 Now $236.48
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S1500-SD15-V1-1M5 pre-assembled cable, designed for reliability and versatility With a wire cross-section of 025 mm² and a total length of 15 meters, this cable meets RoHS standards and is made from durable PVC material It is fully capable of transmitting analogue signals, featuring a SIEMENS S71500 connector on one end and a 15-pole SUB-D female interface on the opposite end This cable operates effectively within a temperature range of -10 to 50 °C and can be safely stored between -10 and 60 °C, making it suitable for a variety of applications.

Features and Benefits:

    •Compliant with RoHS and includes exemptions.

    •Suitable for analogue signal transmission.

    •Constructed from durable PVC material.

    •Incorporates high-quality connectors for reliable performance.

Specifications:

 Cable Cable LiYCY
 Connector PLC side SIEMENS S71500 6ES7592-1AM00-0XB0 40P
 Interface connector SUB-D FEMALE 15P
 Number of poles, min. 15-pole
 Outer diameter 8.7 ± 1 mm
 Electrical Data {'Capacity wire / shield': '300 pF/m', 'Capacity wire / wires': '300 pF/m', 'High voltage test': '1 KV/1s', 'Permissible current strength per path, max.': '1 A', 'Rated voltage': '≤ 60 Vdc ≤ 25 Vac', 'Resistance': '≤ 80 mΩ/m', 'Total current, max.': '3 A'}
 Temperatures {'Storage temperature': '-10...60 °C', 'Operating temperature': '-10...50 °C'}
 General Data {'Basic material': 'PVC'}
 Classifications {'ETIM 6.0': 'EC000237', 'ECLASS 9.0': '27-24-22-20'}
 GTIN (EAN) 4032248287888
