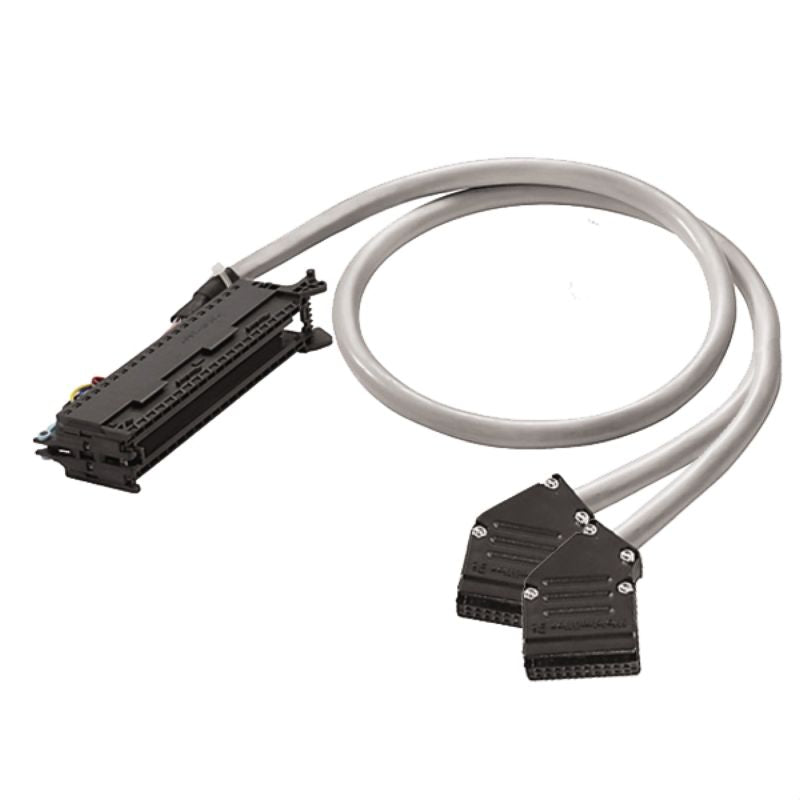

1462040025 - 2.5m Pre-Assembled Cable for SIEMENS S71500, 0.25mm²

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S1500-HE20-V0-2M5, a specifically crafted pre-assembled cable optimized for digital signal transmission Spanning 25 meters in length, this cable features a wire cross-section of 025 mm² and includes a connector tailored for compatibility with SIEMENS S71500 devices With a net weight of 584 grams, it is designed to operate efficiently within a temperature range of -10 to 50 degrees Celsius and can be safely stored in conditions from -10 to 60 degrees Celsius.

Additionally, this product complies with RoHS standards, ensuring it meets environmental safety criteria.

Features and Benefits:

•Compliant with RoHS standards.

•Outer diameter measures 8.6 ± 1 mm.

•Suitable for digital signals.

•High voltage test rated at 1 KV for 1s.

•Permissible current strength per path is up to 1 A.

•Rated voltage is ≤ 60 Vdc and ≤ 25 Vac.

•Resistance is ≤ 80 mΩ/m.

•Total current capacity reaches a maximum of 3 A.

Specifications:
