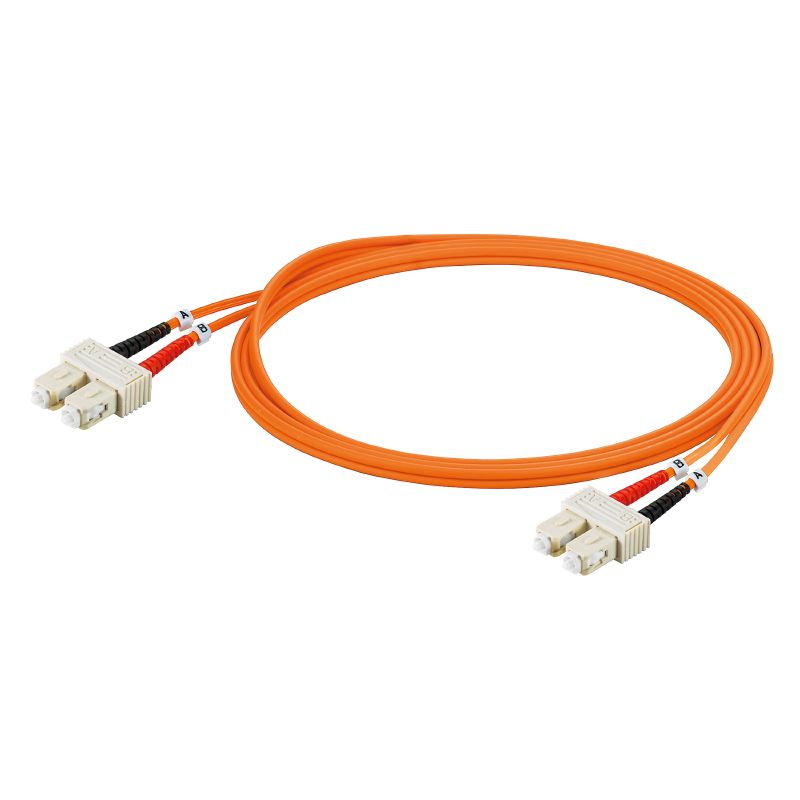

1433960100 - 10m LSZH SC Duplex Patch Cable, IP 20 Compliant

1433960100 - 10m LSZH SC Duplex Patch Cable, IP 20 Compliant

SKU: SKU: 1433960100 Download PDF

Variant:
  • 1433960100 - 10m LSZH SC Duplex Patch Cable, IP 20 Compliant
Regular price Now $39.69
Regular price BEFORE   $0.00 Sale price Now $39.69
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this durable 10-meter patch cable, designed with a duplex clip and compliant with SC duplex IP 20 standards It features a fiber diameter of 625 µm and is constructed from LSZH material, providing safe usage across a temperature range of -20 °C to 70 °C This cable meets RoHS guidelines, containing no substances of very high concern (SVHC) at levels exceeding 01 wt% Additionally, it adheres to key international standards, including IEC 61935-3 and IEC 61156-6, ensuring reliability and performance in your connectivity solutions.

Features and Benefits:

    •Compliant with RoHS regulations.

    •No SVHC above 0.1 wt%.

    •Length of 10 meters.

    •Constructed using 62.5 µm multimode fiber.

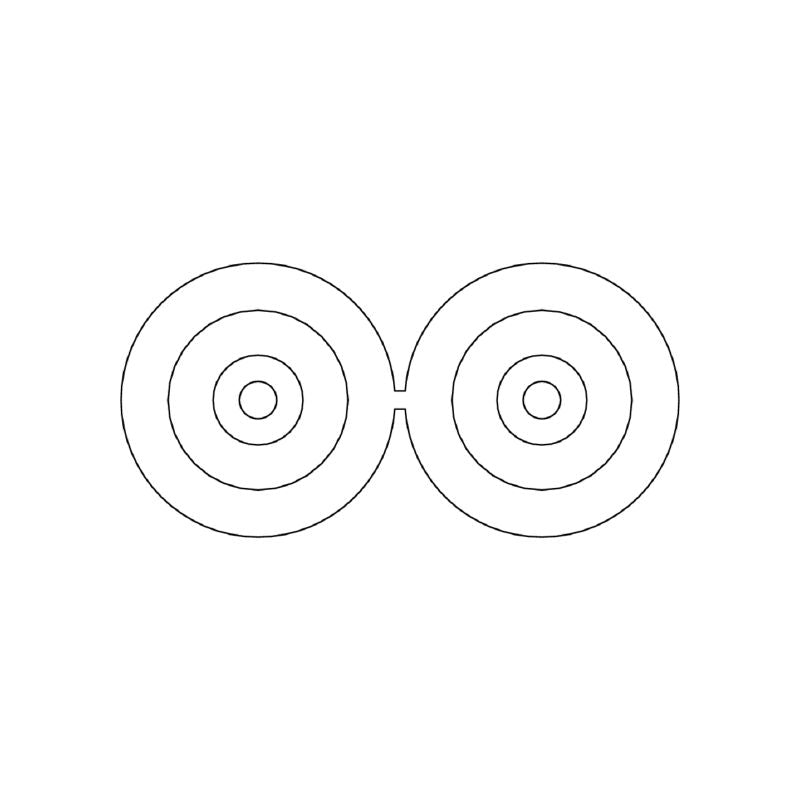

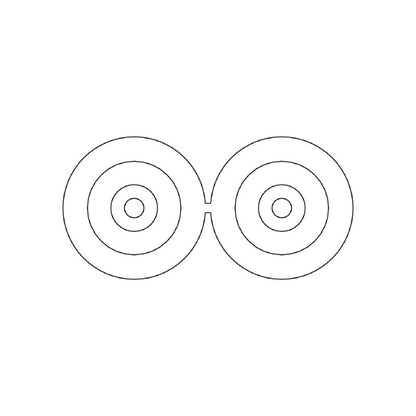

    •ZIPCORD cable layout.

    •Halogen-free construction.

Specifications:

 Operating temperature -20 °C to 70 °C
 Fibre type GOF Multimode OM1
 Attenuation ≤ 3.0 dB/km at 850 nm, ≤ 0.8 dB/km at 1300 nm
 Bandwidth ≥ 200 MHz*km at 850 nm, ≥ 600 MHz*km at 1300 nm
 Core diameter 62.5 µm
 Sheath diameter 2.8 * 5.7 mm
 Min. bending radius, once only 28 mm
 Min. bending radius, repetitive 56 mm
 Plug left SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded
 Plug right SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded
