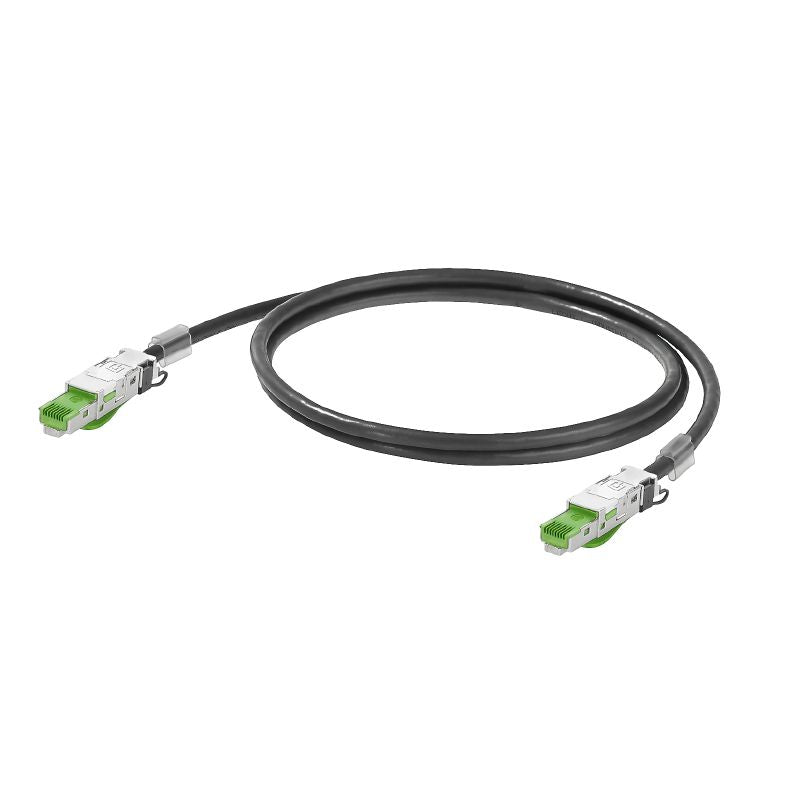

1421710005 - 0.5m RJ45 IP20 Cat.5 System Cable, Durable Radox Sheath

1421710005 - 0.5m RJ45 IP20 Cat.5 System Cable, Durable Radox Sheath

SKU: SKU: 1421710005 Download PDF

Variant:
  • 1421710005 - 0.5m RJ45 IP20 Cat.5 System Cable, Durable Radox Sheath
Regular price Now $63.70
Regular price BEFORE   $0.00 Sale price Now $63.70
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure your connectivity needs are met with this reliable system cable featuring RJ45 connectors, rated IP 20 and compliant with Cat5 standards as per ISO/IEC 11801 Measuring 05 meters, this cable not only meets environmental safety regulations, including RoHS, but is also engineered to perform within a temperature range of -40 °C to +90 °C, making it ideal for various environments Crafted with Radox GKW S material for the sheath, it offers exceptional durability and resistance to corrosive fumes, perfect for demanding applications.

Features and Benefits:

    •RoHS compliant without exemption.

    •Halogen-free according to IEC 60754-2.

    •Very good abrasion resistance.

    •Impervious to smoke according to BS 6853 Appendix D.

    •Suitable for multi-wire metallic data and control cable applications.

Specifications:

 Length 0.5m
 Cross-section 2*2*AWG 22/7 - 2*2*0.36 mm²
 Insulation cross-section 1.58 mm
 Material sheath Radox GKW S
 Sheath diameter (max) 7 mm
 Sheath diameter (min) 6.2 mm
 Color black
 Shielding SF/UTP
 Plug left RJ45, IP20, male contact, straight, plug, Zinc diecast, shielded
 Plug right RJ45, IP20, male contact, straight, plug, Zinc diecast, shielded
 Category Cat.5 (ISO/IEC 11801)
 Min. bending radius (repetitive) 6 *diameter
 Resistance to oils in accordance with EN 50306-3
