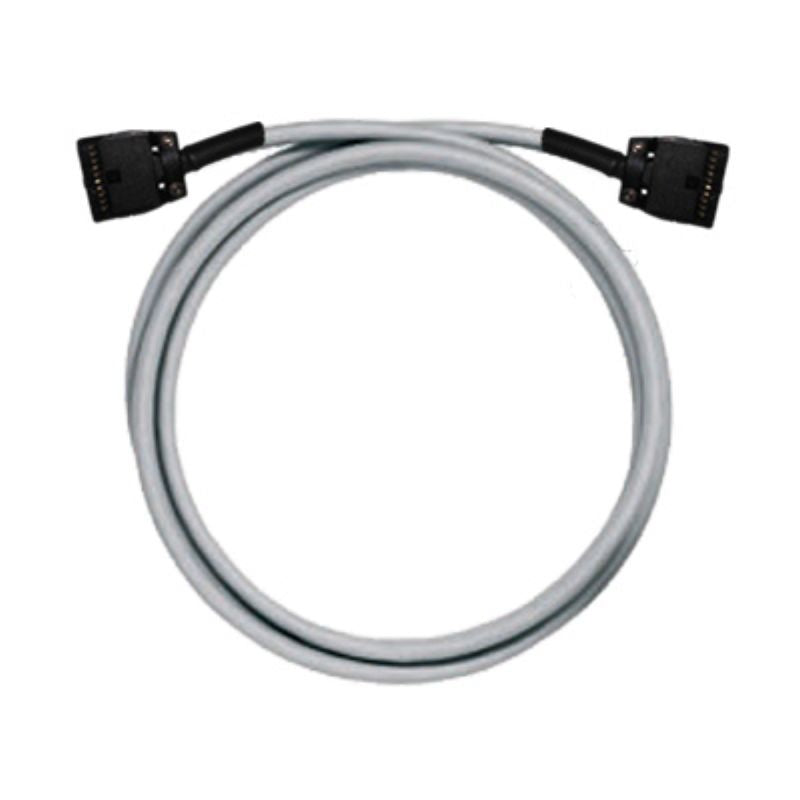

1405060080 - 8m PVC Digital Signal Cable with HE10 Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-UNIV-FJ20-1:1-8M pre-assembled cable, expertly crafted from PVC to efficiently transmit digital signals Its outer diameter measures 86 ± 1 mm, and both ends are fitted with a reliable FLAT CABLE CONNECTOR HE10 20P This cable adheres to RoHS standards for safety and environmental considerations It functions optimally in temperatures ranging from -10 to 50 °C and can be securely stored in temperatures up to 60 °C.

Ideal for your electronic connections, this cable combines quality and performance.

Features and Benefits:

•Net weight of 820 g.

•1 A maximum permissible current strength per path.

•Rated voltage of ≤ 60 V DC and ≤ 25 V AC.

•Resistance of ≤ 80 mΩ/m.

•Total current ability of up to 3 A.

•Suitable for digital signals.

Specifications:
