1376510010 - 1m Durable Dragline Cable for PROFINET, IP20 Rated

SKU: SKU: 1376510010 Download PDF

Variant:

1376510010 - 1m Durable Dragline Cable for PROFINET, IP20 Rated

Now $60.03

~~BEFORE $0.00~~ Now $60.03

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances

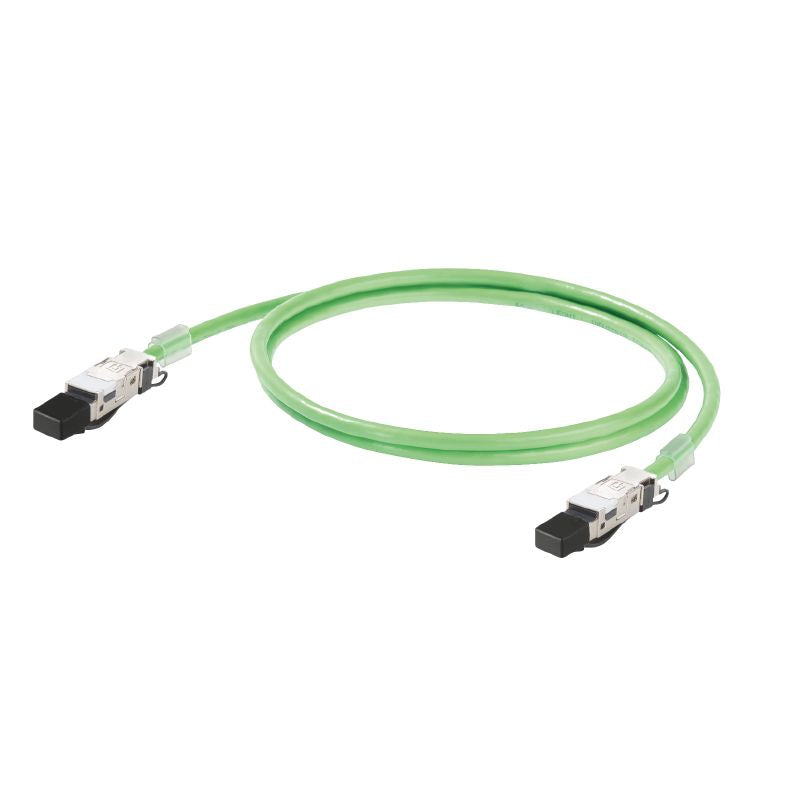

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Elevate your network connectivity with this 1-meter Dragline cable, specifically crafted for PROFINET applications It is equipped with sturdy RJ45 connectors that boast an IP 20 rating, complete with protective caps on both ends for added durability Adhering to Cat5 and Cat5e standards according to ISO/IEC 11801 and TIA T568-B specifications, this cable is constructed from robust PUR material, offering both flexibility and longevity perfect for various environments.

Features and Benefits:

•Complies with RoHS without exemption.

•Halogen-free according to IEC 60754-2.

•UV-resistant.

Specifications:

Length	1 m
Storage temperature	-50 °C to 70 °C
Operating temperature	-40 °C to 70 °C
Installation temperature	-20 °C to 60 °C
Connector standard	IEC 60603-7-51
Mechanical properties	{'Bending cycles': '3 million', 'Pulling force': '≤ 150 N', 'Resistance to oils': 'according to IEC 60811-2-1', 'Resistance to spread of flame': 'according to IEC 60332-1', 'Silicone-free': 'Yes'}
Electrical specifications	{'Category': 'Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)', 'Characteristic impedance': '100 ± 15 Ω at 1–100 MHz', 'Operating voltage (UL rating)': '600 V', 'Loop resistance': '120 Ω/km', 'Signal propagation time': '5.3 ns/m'}
Cable structure	{'Arrangement of wire cores': 'Star-quad', 'Number of wires': '4', 'Complete shielding': 'Aluminium foil', 'Insulation material': 'PE', 'Wire material': 'Stranded tin-plated copper wire'}
