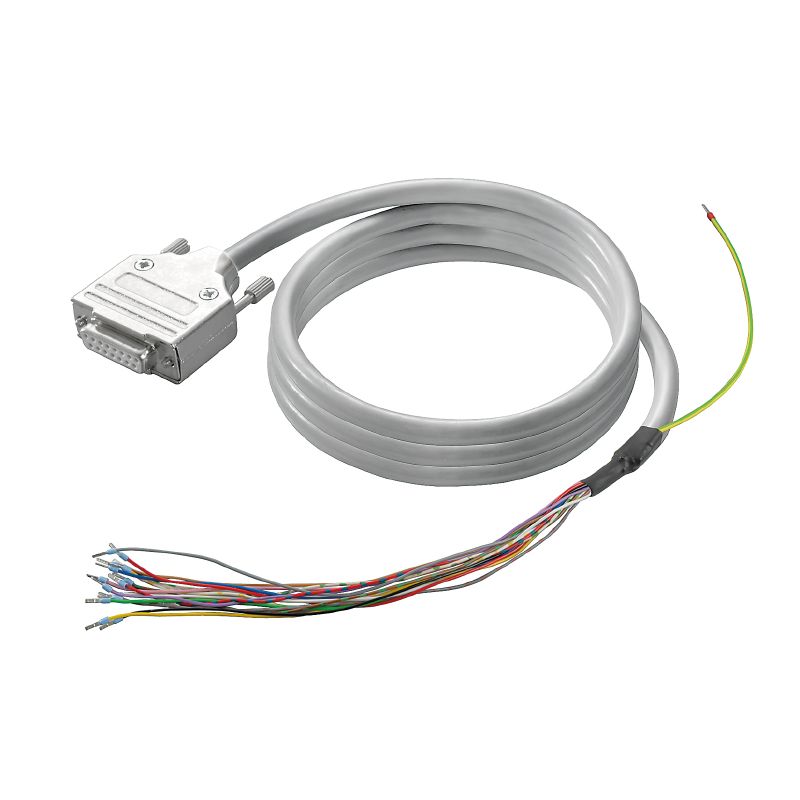

1350430015 - 1.5m PVC Pre-assembled Cable, 10.15mm Diameter

SKU: SKU: 1350430015 Download PDF

Variant:

1350430015 - 1.5m PVC Pre-assembled Cable, 10.15mm Diameter

Now $80.95

~~BEFORE $0.00~~ Now $80.95

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-UNIV-D25M-F-1M5 pre-assembled cable from AIM ELECTRONICS, expertly crafted for analogue signal transmission This cable offers a generous length of 15 meters and features an outer diameter of approximately 1015 mm, with a wire cross-section of 025 mm² On one end, it is equipped with a 25-pole SUB-D MALE connector, while the PLC side boasts a type H025/10 connector, complete with ferrules sized at 0.

25 mm² Made from durable PVC material, this cable is also RoHS compliant, ensuring it meets strict environmental safety standards Perfect for reliable connectivity in various applications.

Features and Benefits:

•Suitable for analogue signals.

•Cable made from PVC.

•Appropriate for a temperature range of -10...50 °C during operation and -10...60 °C during storage.

Specifications:

Operating voltage	≤ 60 V DC ≤ 25 V AC
Permissible current strength per path, max	1 A
Rated voltage	≤ 60 Vdc ≤ 25 Vac
Resistance	≤ 80 mΩ/m
Total current, max	3 A
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
Number of poles, min	25-pole
Cable length	1.5 m
Outer diameter	10.15 ± 1 mm
Wire cross-section	0.25 mm²
General ordering data	{'Order No.': '1350430015', 'GTIN (EAN)': '4032248184798'}
Classifications	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237', 'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
Environmental Product Compliance	{'RoHS Compliance Status': 'Compliant', 'REACH SVHC': 'Lead 7439-92-1', 'SCIP': '4bbf2c0d-0764-4fc8-bb24-9351c28c190d'}
