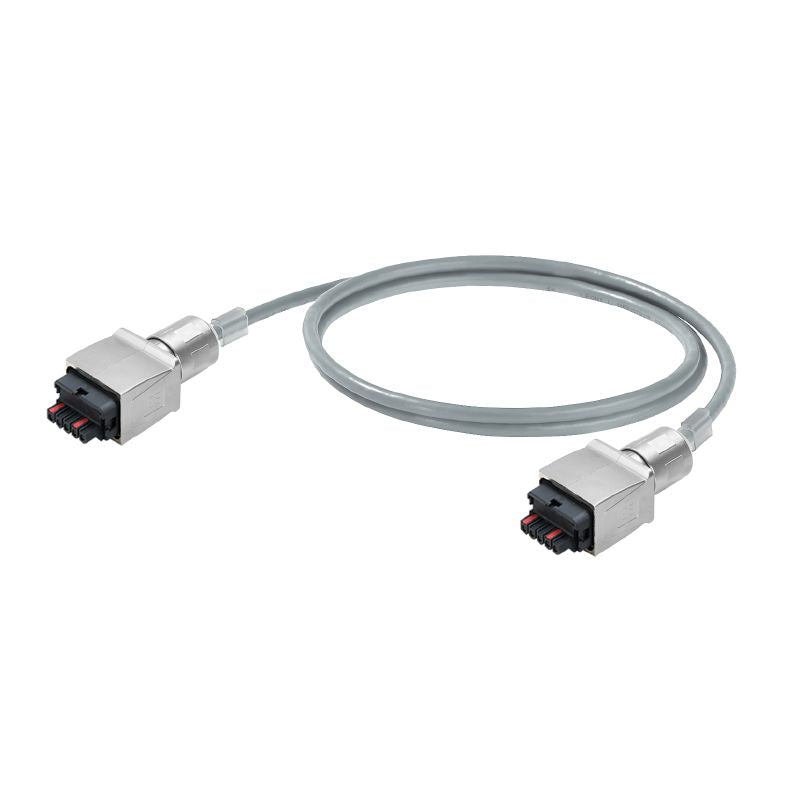

1350120400 - 40m PVC PushPull Power System Cable, 5 Wires, 16A

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the IE-CSPS5VS0400VAPVAP-X, a specialized system cable tailored for PushPull Power applications This impressive 40-meter length cable is crafted to adhere to the PROFINET specifications Its construction features durable PVC for both the insulation and sheath, ensuring longevity Operating at a nominal voltage of 24 V, this cable also complies with RoHS standards With a design that includes five wires, each boasting a cross-section of 5*1.

5 mm², the cable can handle up to 16 A of current at a temperature of 50 °C Its unshielded design allows for flexibility, and the sheath reaches a maximum diameter of 81 mm The elegant grey hue resembles RAL 7001, making it a practical and visually appealing choice for your application needs.

Features and Benefits:

•Compliant with RoHS without exemption.

•Operating temperature range from -40 °C to 70 °C.

•Installation temperature range from -15 °C to 70 °C.

•Halogen-free.

•Mechanical bending cycles rated for 1 million cycles.

•Resistance to the spread of flame in accordance with IEC 60332-1-2.

•PushPull Power connectors are rated IP67 for protection against dust and water.
