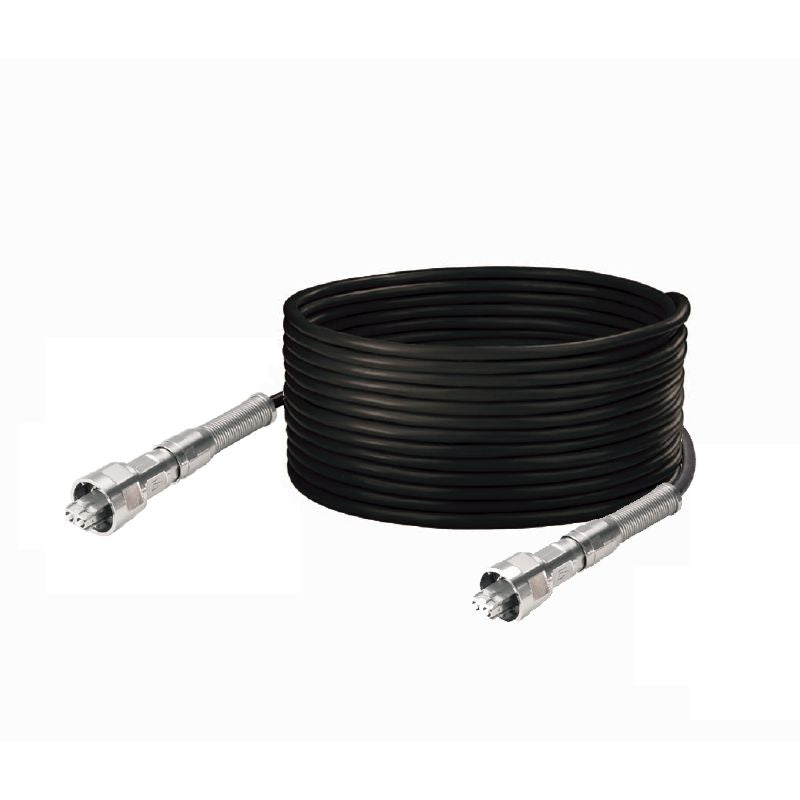

1318015000 - 500m Durable Dragline Cable with IP67 Bayonet Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Dragline cable, engineered for superior performance with IP67 bayonet connectors at either end Constructed from high-quality PUR material, this cable guarantees exceptional durability for a variety of applications Spanning a length of 500 meters, it features a core diameter of 625 µm Designed to withstand temperatures from -40 °C to +85 °C during operation and can be stored safely within a temperature range of -55 °C to +85 °C.

Additionally, this cable adheres to RoHS standards and includes lead as a recognized SVHC per REACH regulations.

Features and Benefits:

•Fibre type: Multimode OM1.

•Sheath diameter of 7.5–8 mm.

•Black sheathing color.

•Break-out dragline cable layout.

•Bending cycles rated for 100,000.

•Insertion loss ≤ 0.4 dB.

•Return loss (attenuation) ≥ 30 dB.

•Plug information: SC, IP67, male contact, straight, V1 Bayonett, plug.
