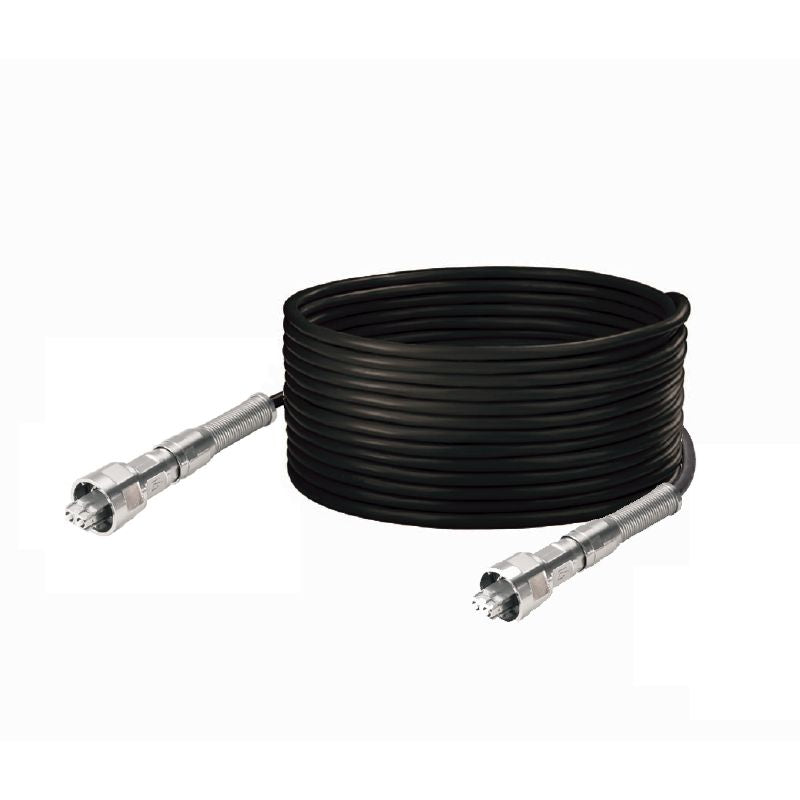

1318012500 - IP67 Dragline Cable, 62.5 µm x 250m, PUR Material

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a high-performance dragline cable with an impressive IP67 rating, expertly crafted from durable PUR material This cable features a core diameter of 625 µm and is engineered to thrive in a wide range of environments, operating effectively in temperatures from -55 °C to 85 °C for both storage and use, with an installation temperature range of -55 °C to 60 °C Experience minimal signal loss with an attenuation rate of 2.

7 dB/km at 850 nm and 05 dB/km at 1300 nm, complemented by outstanding bandwidth capabilities of 200 MHz*km at 850 nm and 500 MHz*km at 1300 nm The innovative break-out design enhances its functionality, while the cable sheath measures between 75-8 mm in diameter, meeting RoHS compliance standards for safety and sustainability.

Features and Benefits:

•Compliant with RoHS regulations.

•Drainage design and mechanical properties suited for tough environments.

•High durability with 100,000 bending cycles.

•Black color of sheath for better visibility in installation contexts.

Specifications:
