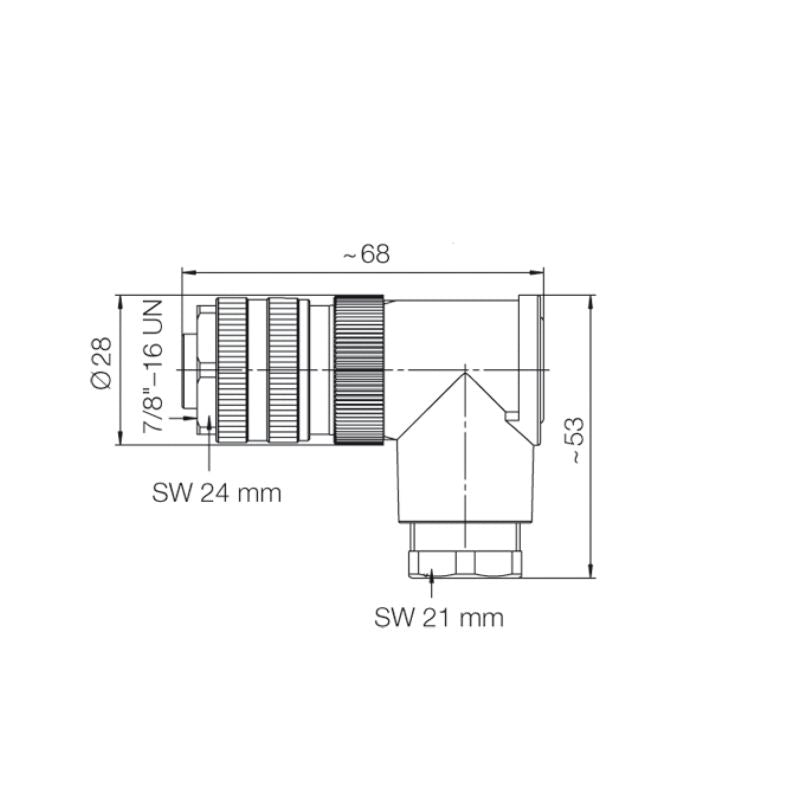

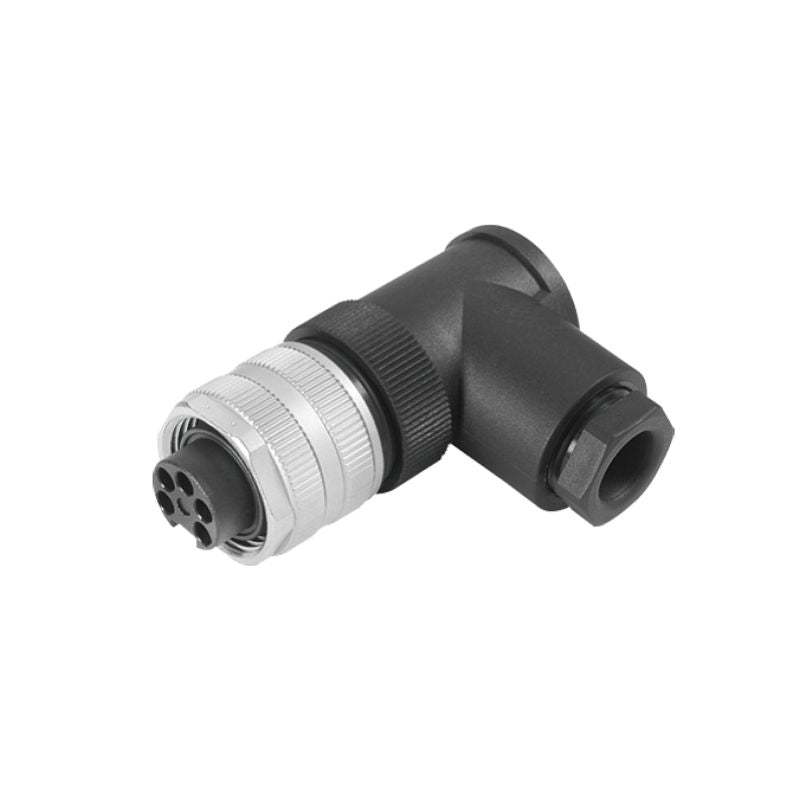

1292030000 - IP67 7/8" Field Attachable Connector for 8-10mm Cables

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable 7/8" field attachable connector, expertly crafted to meet essential industry standards Constructed with durable PBT housing, this connector incorporates female contacts featuring a gold-plated surface for optimal conductivity It adheres to RoHS regulations and carries certifications such as cURus, ensuring safe use in various applications Designed to accommodate cable diameters between 8 mm and 10 mm, it supports a nominal current of 9 A, making it versatile for demanding electrical connections.

This connector is engineered to endure temperatures ranging from -40 °C to +85 °C and boasts an IP67 protection rating, ensuring resilience in diverse environments.

Features and Benefits:

•Compatible with cable diameters between 8 mm and 10 mm.

•IP67 rated for protection against dust and temporary water immersion.

•Built from durable PBT material.

•Gold-plated contacts for improved conductivity.

•Nominal current rating of 9 A.

•Female contact for secure connection.

•High insulation resistance of 10e8 Ω.

•Capable of withstanding up to 50 plugging cycles.

Specifications:
