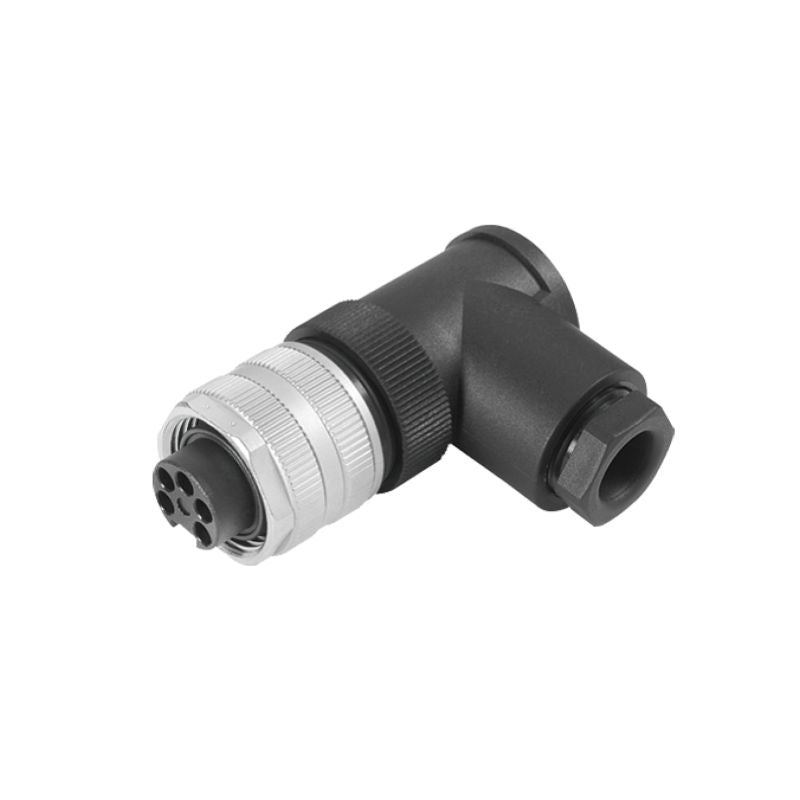

1291940000 - IP67 Removable 7/8" Field Connectors for 8-10mm Cables

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile field attachable connector that boasts a removable design, perfectly suited for cables with diameters between 8 mm and 10 mm This connector features female contacts made from copper zinc and is enhanced with a gold-plated finish to guarantee dependable connections Capable of handling a nominal current of 12 A and a voltage of 300 V, it includes three poles for added functionality.

Its robust construction allows it to perform efficiently in temperatures ranging from -40 to +85 °C, making it an excellent choice for diverse environments Additionally, with an IP67 rating, this connector provides superior dust and water resistance, ensuring long-lasting durability even in tough conditions.

Features and Benefits:

•Gold-plated contact surface for optimal conductivity.

•Compatible with a cable diameter range from 8 mm to 10 mm.

•Screw connection type for secure assembly.

•Designed for up to 50 plugging cycles.

•Rated for a high degree of protection (IP67).

Specifications:
