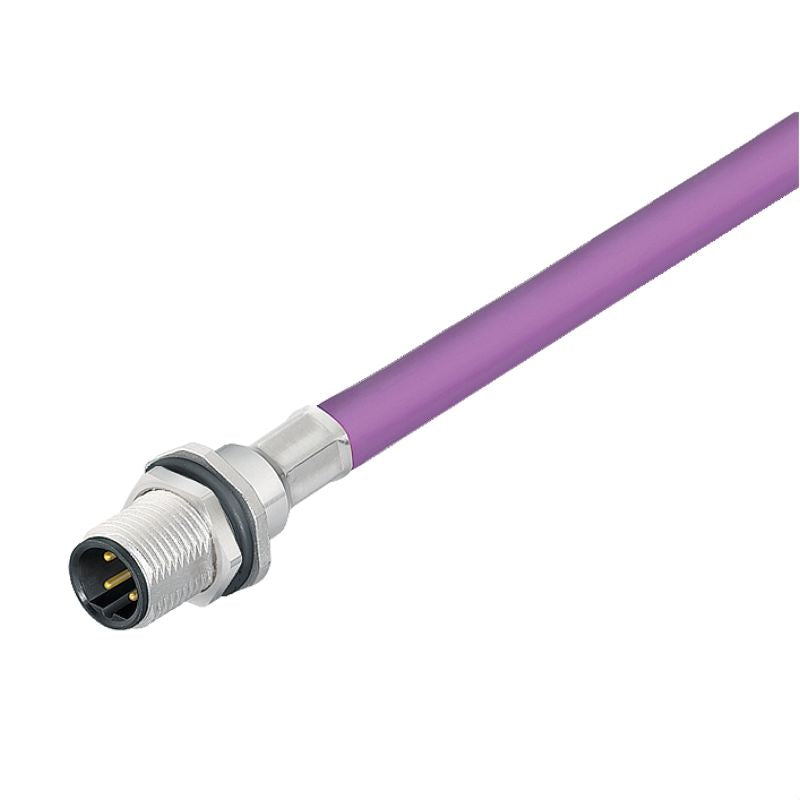

1279490100 - M12 Connector Cable, 1m Length, 2 Poles, RoHS Compliant

1279490100 - M12 Connector Cable, 1m Length, 2 Poles, RoHS Compliant

SKU: SKU: 1279490100 Download PDF

Variant:
  • 1279490100 - M12 Connector Cable, 1m Length, 2 Poles, RoHS Compliant
Regular price Now $25.99
Regular price BEFORE   $0.00 Sale price Now $25.99
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This product is equipped with integrated connectors that feature an M12 connection type and a PG 9 cable gland Measuring 1 meter in length, it boasts 2 poles with a core cross-section of 025 mm² With a net weight of 82 grams, it adheres to RoHS standards, including specific exemptions.

Features and Benefits:

    •Gold-plated contact surface.

    •Requirements for a nominal current of 4A and a nominal voltage of 250V.

    •Ability to withstand at least 500 plugging cycles.

    •Rated protection degree of IP68 for dust and water resistance.

    •Temperature range for housing from -20 to +60 °C.

Specifications:

 Cable length 1 m
 Core cross-section 0.25 mm²
 Number of poles 2
 PE function No
 Cable gland PG 9
 Coding B-coded
 Conductor cross-section, max. 0.25 mm²
 Housing main material Zinc diecast, nickel-plated
 Pollution severity 3
 ETIM classifications {'ETIM 6.0': 'EC002635', 'ETIM 7.0': 'EC003570', 'ETIM 8.0': 'EC003570', 'ETIM 9.0': 'EC003570', 'ETIM 10.0': 'EC003570', 'ECLASS 9.0': '27-44-01-03', 'ECLASS 9.1': '27-44-01-03', 'ECLASS 10.0': '27-44-01-03', 'ECLASS 11.0': '27-44-01-03', 'ECLASS 12.0': '27-44-01-03', 'ECLASS 13.0': '27-44-01-03', 'ECLASS 14.0': '27-44-01-03', 'ECLASS 15.0': '27-44-01-03'}
