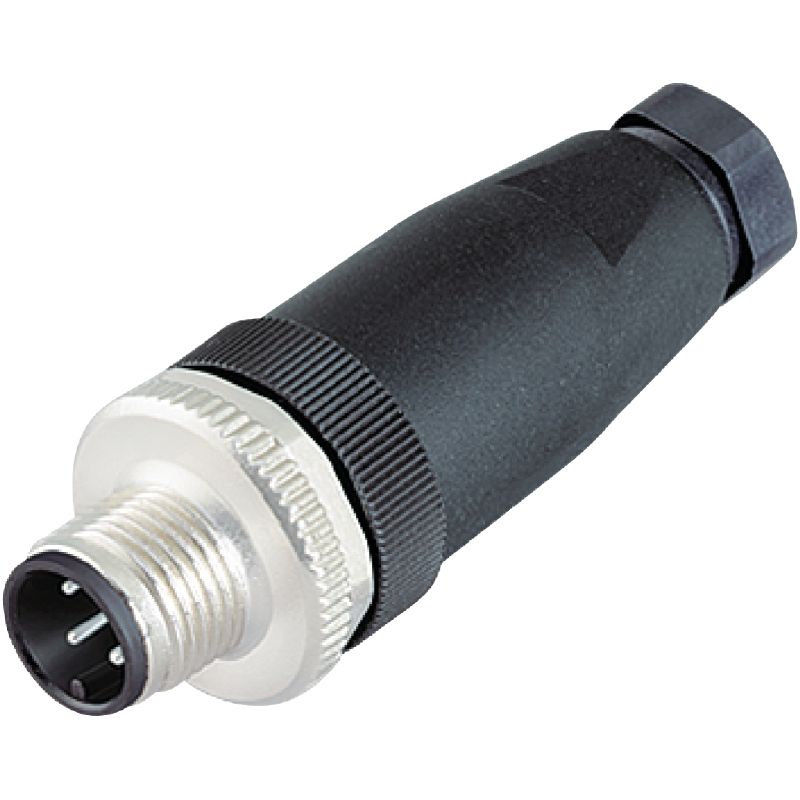

1044700000 - RoHS Compliant M12 Connector for 6mm & 8mm Cables

1044700000 - RoHS Compliant M12 Connector for 6mm & 8mm Cables

SKU: SKU: 1044700000   Download PDF

Select a Variant:
  • 1044700000 - RoHS Compliant M12 Connector for 6mm & 8mm Cables
Qty:
Regular price Now $10.91   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $10.91 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile M12 connector designed for easy field attachment with RoHS compliance This connector accommodates cable diameters of both 6 mm and 8 mm, making it highly adaptable for various applications It features a gold-plated contact surface that ensures reliable performance, particularly in tension-clamp connections Constructed from durable PA material, this connector operates efficiently within a temperature range of -40 to +85 °C.

Capable of handling a nominal current of 4 A and a nominal voltage of 60 V, it also boasts an impressive IP67 protection rating, making it suitable for demanding environments.

Features and Benefits:

    •RoHS compliant without exemption.

    •Gold-plated contact surface.

    •M12 connection thread.

    •Can operate in temperature ranges from -40 to +85 °C.

    •Supports ≥ 100 plugging cycles.

Specifications:

 Cable diameter, max. 8 mm
 Cable diameter, min. 6 mm
 Conductor cross-section, max. 0.5 mm²
 Conductor cross-section, min. 0.14 mm²
 Gender of contact Male
 Insulation resistance 10^8 Ω
 Number of poles 5
 Pollution severity 3
 Shield connection No
 Threaded ring material Diecast zinc
 Type of connection Tension-clamp connection
