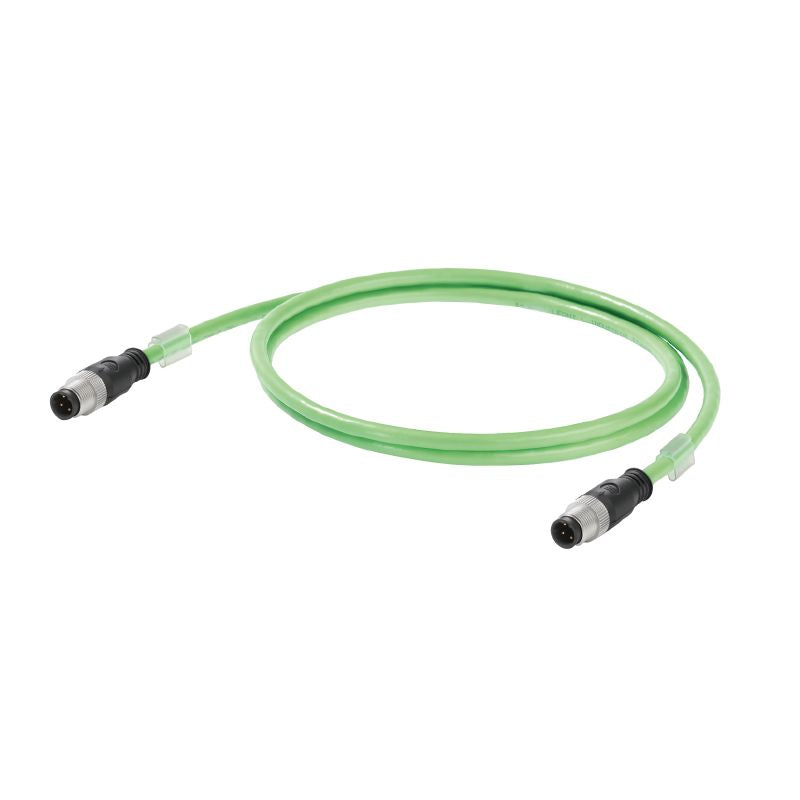

1025950046 - 4.6m PROFINET Dragline Cable, M12 D-Code, IP67, Cat.5/5e

SKU: SKU: 1025950046 Download PDF

Select a Variant:

1025950046 - 4.6m PROFINET Dragline Cable, M12 D-Code, IP67, Cat.5/5e

SET THE QTY:

Now $68.91 Web pricing policy

~~BEFORE $0.00~~ Now $68.91 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a premium dragline cable specifically crafted for PROFINET applications This high-performance cable is equipped with M12 D-coded straight pin connectors and meets the stringent IP67 standards for protection against dust and water Classified under Cat5 and Cat5e standards in accordance with ISO/IEC 11801 and TIA T568-B, it boasts a length of 46 meters The robust PUR sheath guarantees enhanced durability, making this cable a reliable choice for your connectivity needs.

Features and Benefits:

•RoHS compliant with exemption.

•Halogen-free according to IEC 60754-2.

•UV-resistant.

•Silicone-free.

•Abrasion resistant with very good performance.

•Resistance to oils per IEC 60811-2-1.

•Excellent fire propagation properties.

•High bending cycle durability up to 3 million cycles.

Specifications:

Length	4.6 m
Diameter of inner sheathing	3.9 mm
Sheath diameter	6.3 - 6.7 mm
Capacity at 1 kHz	52 nF/km
Operating voltage (UL rating)	600 V
Bending cycle capacity	3 Mio
Installation temperature	-20 °C...60 °C
Operating temperature	-40 °C...70 °C
Storage temperature	-50 °C...70 °C
Number of wires	4
Wire core insulation thickness	0.38 mm
Cross-section	4*AWG 22/7 - 0.32 mm²
Signal propagation time	5.3 ns/m
Test voltage: wire-wire-shield	2000 V, 50 Hz, 1 min
Resistance to spread of flame	in accordance with IEC 60332-1
Operational characteristics	{'Delay skew': '40 ns/100m', 'Loop resistance': '120 Ω/km', 'Characteristic impedance': '100 ± 15 Ω at 1–100 MHz'}
Color of sheath	green (RAL 6018)
