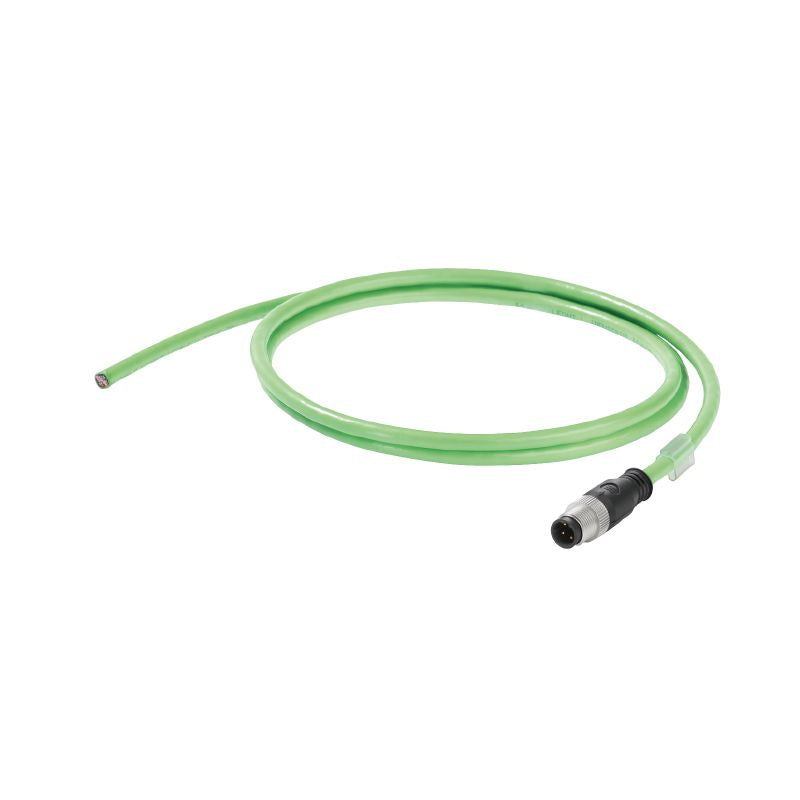

1025940500 - 50m PROFINET Dragline Cable with IP67 M12 D-code Connectors

SKU: SKU: 1025940500 Download PDF

Select a Variant:

1025940500 - 50m PROFINET Dragline Cable with IP67 M12 D-code Connectors

SET THE QTY:

Now $280.54 Web pricing policy

~~BEFORE $0.00~~ Now $280.54 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the Dragline cable, expertly crafted for PROFINET applications, featuring M12 D-code straight pin connectors With an impressive IP 67 rating, this cable is designed to withstand harsh conditions It complies with Cat5 standards (ISO/IEC 11801) and Cat5e specifications (TIA T568-B), ensuring reliable performance Made from resilient PUR material, this cable offers a generous length of 50 meters, making it ideal for a variety of applications.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Halogen-free per IEC 60754-2.

•UV-resistant.

•Silicone-free.

•Very good abrasion resistance.

•Standard designations: 2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC.

Specifications:

Length	50 m
Net weight	3,129.5 g
Storage temperature	-50 °C to 70 °C
Operating temperature	-40 °C to 70 °C
Installation temperature	-20 °C to 60 °C
Capacity at 1 kHz	52 nF/km
Category	Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Loop resistance	120 Ω/km
Operating voltage (UL rating)	600 V
Signal propagation time	5.3 ns/m
Speed	180 m/min
Bending cycles	3 Mio
Min. bending radius, once only	5 x cable diameter
Min. bending radius, repetitive	7.5 x cable diameter
Resistance differential	3 %
Test voltage: wire-wire-shield	2000 V eff, 50 Hz, 1 min
Plug left	M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded
Plug right	free conductor end
