Web sensor - compressed air remote thermometer hygrometer with Ethernet interface, cable 2 meters

Web sensor - compressed air remote thermometer hygrometer with Ethernet interface, cable 2 meters

SKU: T3511P-2 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

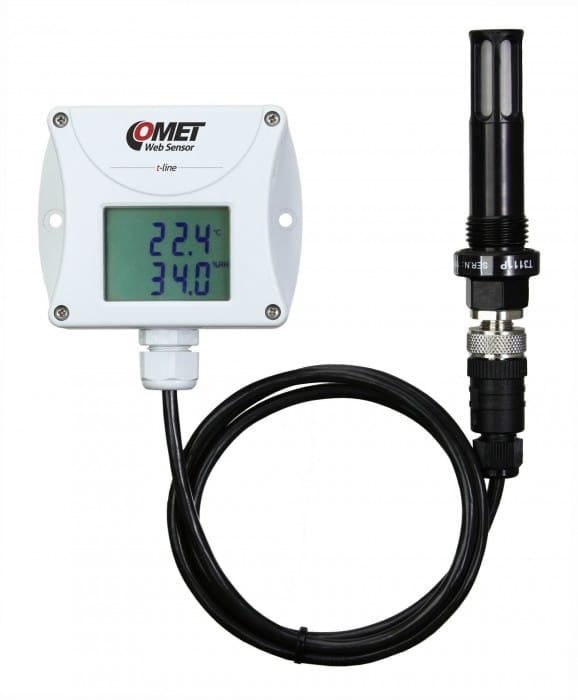

The Web sensor is a humidity and temperature transmitter equipped with a T+RH probe made from hard anodized duralumin, designed for measuring compressed air conditions up to 25 bars through a 2-meter cable This device not only measures temperature and relative humidity, but it also converts these values to additional interpretations such as dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

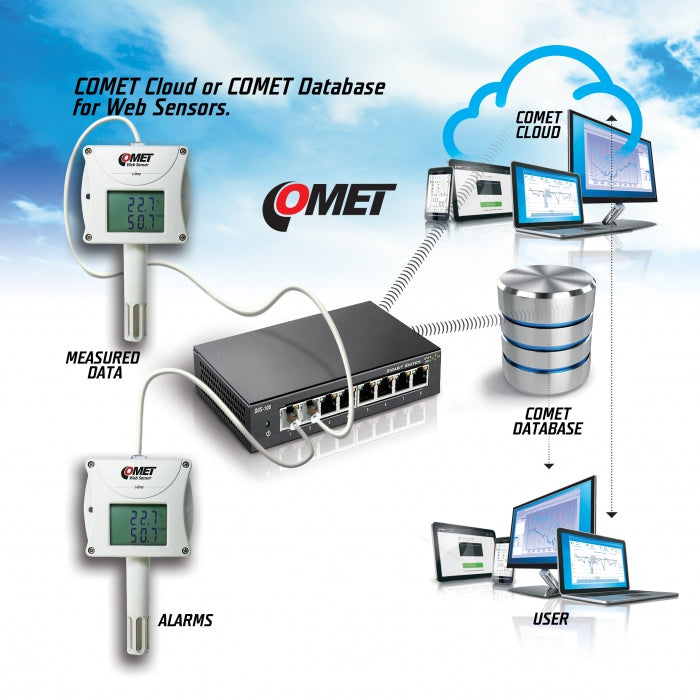

It facilitates online processing and analysis of measured data through COMET Cloud and integrates seamlessly into third-party systems via software.

Features and Benefits:

    •Humidity and temperature measurements with Ethernet connectivity.

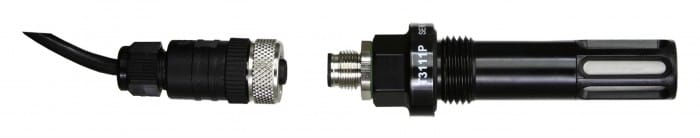

    •T+RH probe designed for compressed air applications.

    •Multiple humidity interpretations including dew point and absolute humidity.

    •Online data processing in COMET Cloud.

    •Integration capabilities with third-party systems.

Specifications:

 Measured value Temperature
 Relative humidity
 Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Temperature sensor measuring range -30 to +105 °C
 Temperature sensor accuracy ±0.4 °C
 Temperature sensor resolution 0.1 °C
 Humidity sensor measuring range 0 to 100 % RH
 Humidity sensor accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity sensor resolution 0.1% RH
 Dew point measuring range -60 to +80 °C
 Dew point accuracy ±1.5°C for dew point temperature +10°C and higher at ambient temperature +25°C; ±2.0°C for dew point temperature 0°C at ambient temperature +25°C; ±3.0°C for dew point temperature -10°C at ambient temperature +25°C; ±6.0°C for dew point temperature -20°C at ambient temperature +25°C
 Dew point resolution 0.1 °C
 Measuring the moisture of compressed air measuring range up to 25 bars
 Air flow velocity up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)
 Operating temperature -30 to +80 °C
 Channels 1x connectable temperature+humidity probe
 Output Ethernet
 Range of humidity sensor temperature compensation all temperature range
 Measuring interval 2 s
 Available temperature units degrees Celsius, degrees Fahrenheit
 Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
 Alarm protocols E-mail, SNMP Trap, Syslog
 Power 9-30 Vdc
 Protection class IP30 electronics; IP40 sensors

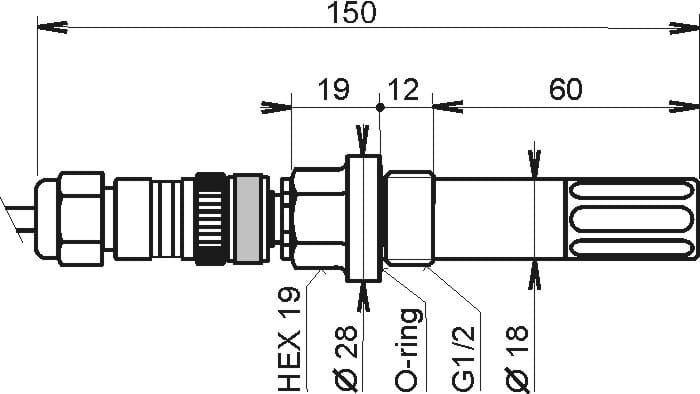

 Dimensions 88,5 x 93 x 39,5 mm; length/diameter of external probe 150/18 mm
 External probe cable length 2 meters
 Warranty 3 years
