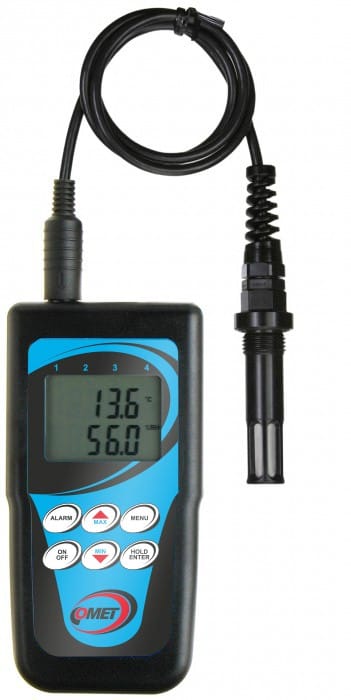

Thermo-hygrometer for compressed air measurement, cable 2 meters

Thermo-hygrometer for compressed air measurement, cable 2 meters

SKU: D3121P-2   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Thermometer, hygrometer is designed for measurement and datalogging of temperature, relative humidity for compressed air up to 25 bars with 2 meters cable into the internal non-volatile memory Free PC program enables to transfer recorded data to the computer for evaluation LCD backlight Data logger is connected to the PC through USB cable only for data trasfer from the memory During connection with the PC no measurement and record is enabled.

Simultaneous reading of temperature and relative humidity, dew point temperature reading selectable, external temperature-humidity probe with 2 meters cable Probe diameter is 18mm, length 135mm.

Features and Benefits:

    •Simultaneous reading of temperature and relative humidity.

    •Dew point temperature reading selectable.

    •External temperature-humidity probe with 2 meters cable.

    •Free PC program for data transfer and evaluation.

    •Acoustic signalization and backlit LCD.

    •Measurement and datalogging of temperature and relative humidity for compressed air.

Specifications:

 Measuring range (Temperature) -30 to +105 °C
 Accuracy (Temperature) ±0.4 °C
 Resolution (Temperature) 0.1 °C
 Measuring range (Relative humidity) 0 to 100 % RH
 Accuracy (Relative humidity) ±2.5 % RH from 5 to 95 % at 23 °C
 Resolution (Relative humidity) 0.1% RH
 Measuring range (Dew Point) -50 to +80 °C
 Accuracy (Dew Point) ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Resolution (Dew Point) 0.1 °C
 Operating temperature electronics -10 to +60 °C, external probe -30 to +105 °C
 Channels 1x connectable temperature+humidity probe
 Memory 16,000 values (non-cyclic record)
 Recording interval adjustable from 10 s to 24 h
 Measuring interval and display reading refresh 0.7 to 5 s
 Recording mode noncyclic - data logging stops after filling the memory; cyclic - after filling memory oldest data is overwritten by new
 Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
 Battery life approx. 6 months
 Protection class IP20 electronics, IP40 sensors
 Dimensions (without connectors) 191 x 71 x 27 mm; length/diameter of external probe 135/18 mm
 External probe cable length 2 meters
