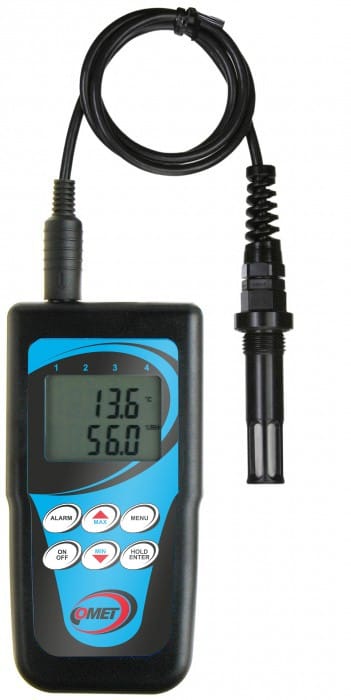

Thermo-hygrometer for compressed air measurement, cable 2 meters

Thermo-hygrometer for compressed air measurement, cable 2 meters

SKU: C3121P-2 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Thermometer, hygrometer is designed for direct measurement of temperature, relative humidity for compressed air up to 25 bars with 2 meters cable Audio and optical alarm of measured values Memory of minimum and maximum measured values Function Hold - manual storing of actual values for later displaying Simultaneous reading of temperature and relative humidity, dew point temperature reading selectable, external temperature-humidity probe with 2 meters cable.

Features and Benefits:

    •Audio and optical alarm of measured values.

    •Memory of minimum and maximum measured values.

    •Function Hold for manual storing of actual values.

    •Simultaneous reading of temperature and relative humidity.

    •Dew point temperature reading selectable.

    •External temperature-humidity probe with 2 meters cable.

Specifications:

 Temperature Sensor Measuring range: -30 to +105 °C
 Temperature Sensor Accuracy: ±0.4 °C
 Temperature Sensor Resolution: 0.1 °C
 Humidity Sensor Measuring range: 0 to 100 % RH
 Humidity Sensor Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution: 0.1% RH
 Dew Point Measuring range: -50 to +80 °C
 Dew Point Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution: 0.1 °C
 Operating temperature: electronics -10 to +60 °C, external probe -30 to +105 °C
 Channels: 1x connectable temperature+humidity probe
 Acoustic signalization + backlit LCD: YES
 Measuring interval and display reading refresh: 0.7 to 5 s
 Power: battery 9 V or 12 Vss adaptor with NiMH 9 V battery
 Battery life: approx. 4 months
 Protection class: IP20 electronics, IP40 sensors
 Dimensions (without connectors): 141 x 71 x 27 mm
 External probe cable length: 2 meters
