Thermo-hygro-barometer external probe cable 4 meters

Thermo-hygro-barometer external probe cable 4 meters

SKU: D4141-4 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The thermometer, hygrometer, and barometer is designed for measurement and datalogging of temperature, relative humidity, and atmospheric pressure into the internal non-volatile memory It includes barometric pressure tendency reading capability A free PC program enables the transfer of recorded data to a computer for evaluation It features audio and optical alarms for measured values, minimum and maximum measured values memory, and a manual storing function for actual values.

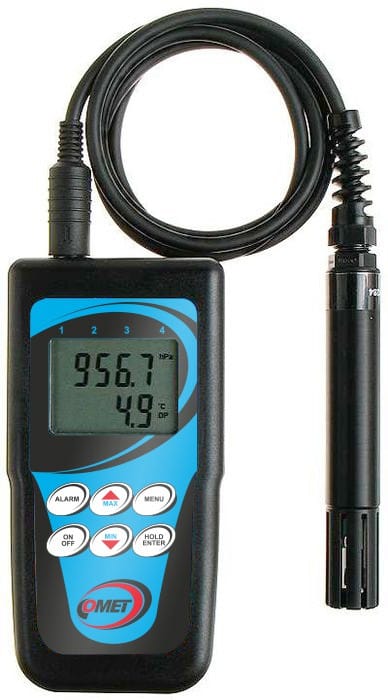

This device connects to the PC via an included USB cable solely for data transfer, and no measurement or recording occurs during the PC connection The device comes with an external air temperature-humidity probe connected by a 4-meter cable, with a probe diameter of 18mm and a length of 135mm, alongside built-in indoor temperature and air pressure sensors.

Features and Benefits:

    •Includes barometric pressure tendency reading.

    •Free PC program for data transfer and evaluation.

    •Audio and optical alarm for measured values.

    •Memory for minimum and maximum measured values.

    •Function Hold for manual value storage.

    •Connects to PC via USB only for data transfer.

Specifications:

 Temperature Sensor Measuring Range -10 to +60 °C (internal); -30 to +105 °C (external)
 Temperature Sensor Accuracy ±0.4 °C
 Temperature Sensor Resolution 0.1 °C
 Humidity Sensor Measuring Range 0 to 100 % RH
 Humidity Sensor Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 Atmospheric Pressure Sensor Measuring Range 800 to 1100 hPa
 Atmospheric Pressure Sensor Accuracy ±2hPa at 23°C
 Atmospheric Pressure Sensor Resolution 0.1 hPa
 Operating Temperature electronics -10 to +60 °C, external probe -30 to +105 °C
 Channels internal sensor of temperature and atmospheric pressure, 1x connectable temperature+humidity probe
 Acoustic Signalization + Backlit LCD YES
 Memory 16,000 values (non-cyclic record)
 Recording Interval adjustable from 10 s to 24 h
 Measuring Interval and Display Reading Refresh 0.7 to 5 s
 Recording Mode noncyclic - data logging stops after filling the memory, cyclic - after filling memory oldest data is overwritten by new
 Real Time Clock year, leap year, month, day, hour, minute, second
 Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
 Battery Life approx. 6 months
 Protection Class IP20
 Dimensions (without connectors) 191 x 71 x 27 mm; length/diameter of external probe 135/18 mm
 External Probe Cable Length 4 meters
