Temperature and Humidity Probe with 4 Meters Cable

Temperature and Humidity Probe with 4 Meters Cable

SKU: T0211-4   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

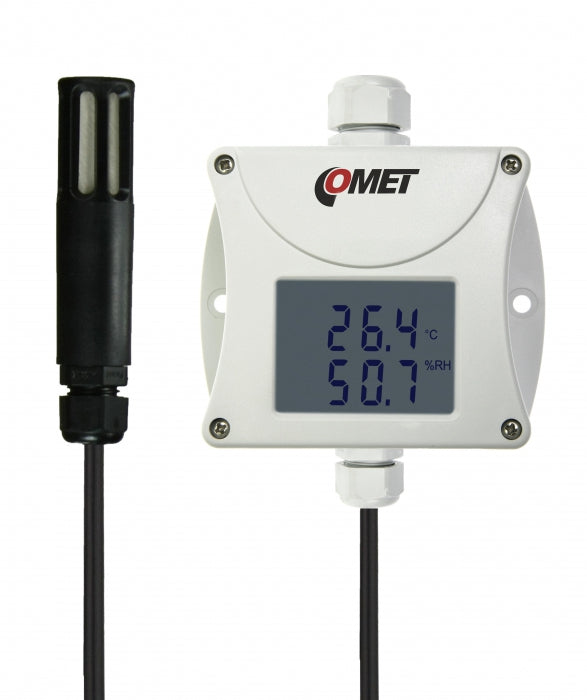

The temperature and humidity probe is designed for both outdoor and indoor use, featuring a 4-meter cable and a 0-10V output It accurately measures temperature and relative humidity while providing converted values such as dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy This device comes equipped with a T+RH probe extending to 4 meters in length.

Features and Benefits:

    •Measures temperature from -30 to +105 °C with accuracy of ±0.4 °C.

    •Relative humidity measuring range is 0 to 100 % RH with accuracy of ±2.5 % RH.

    •Capable of calculating dew point temperatures and other humidity interpretations.

    •Output is configurable from a PC and adjustable within the measured range.

    •IP65 protection class for electronics and IP40 for sensors.

Specifications:

 TEMPERATURE SENSOR Measuring range -30 to +105 °C
 Temperature Sensor Accuracy ±0.4 °C
 Temperature Sensor Resolution 0.1 °C
 HUMIDITY SENSOR Measuring range 0 to 100 % RH
 Humidity Sensor Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution 0.1% RH
 DEW POINT Measuring range -60 to +80 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 GENERAL TECHNICAL DATA Operating temperature -30 to +80 °C
 Channels 1x connectable temperature+humidity probe
 Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Output 0 - 10 V
 Power 15-30 Vdc; 24 Vac
 Protection class IP65 electronics; IP40 sensors
 Dimensions 88.5 x 145 x 39.5 mm; length/diameter of external probe 88/18 mm
 External probe cable length 4 meters
 Weight approx. 210 g
