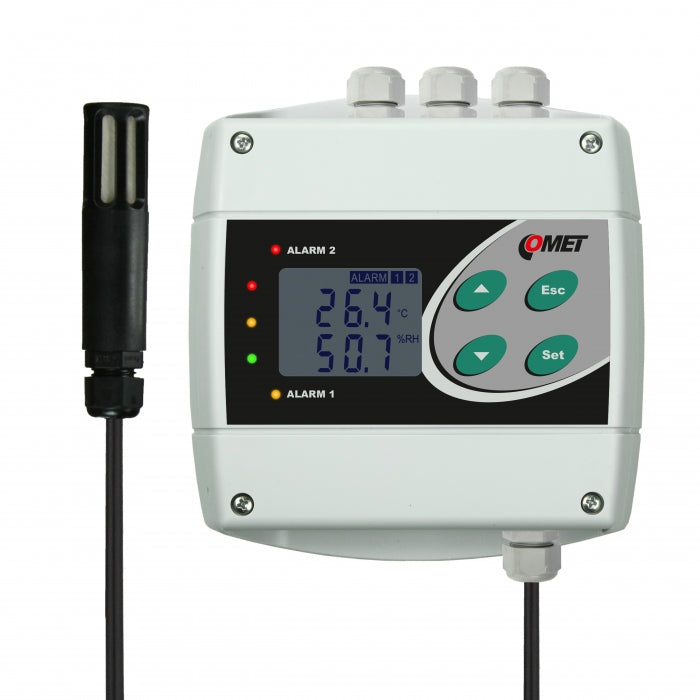

T+RH Temperature and Humidity Regulator, cable 4 meters

T+RH Temperature and Humidity Regulator, cable 4 meters

SKU: H3021-4   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The temperature and humidity regulator is equipped with a humidistat and thermostat featuring two relay outputs, designed for both outdoor and indoor use It includes a humidity and temperature probe on a cable, with measured values converted into various humidity interpretations such as dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy The device comes with a T+RH probe connected by a 4 meters cable.

Features and Benefits:

    •Includes a T+RH probe with 4 meters cable.

    •Measures temperature and relative humidity.

    •Provides outputs for dew point, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

    •Two relay outputs with a maximum voltage of 50 V and a current of 2 A.

    •Built-in acoustic alarm with switchable option.

    •Protection class IP65 for electronics and IP40 for sensors.

Specifications:

 Temperature Measuring Range: -30 to +105 °C
 Temperature Accuracy: ±0.4 °C
 Temperature Resolution: 0.1 °C
 Humidity Measuring Range: 0 to 100 % RH
 Humidity Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution: 0.1% RH
 Dew Point Measuring Range: -60 to +80 °C
 Dew Point Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution: 0.1 °C
 Relay Outputs Quantity: 2
 Relay Outputs Maximal Voltage: 50 V
 Relay Outputs Maximal Current: 2 A
 Relay Outputs Maximal Power: 60 VA
 Operating Temperature: -30 to +80 °C
 Channels: 1x connectable temperature+humidity probe
 Counted Values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Power: 9-30 Vdc
 Dimensions: 136 x 159 x 45 mm; length/diameter of external probe 88/18 mm
 External Probe Cable Length: 4 meters
