RH+T Transmitter with RS485 Output, Cable 4 Meters

RH+T Transmitter with RS485 Output, Cable 4 Meters

SKU: T3419P-4   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

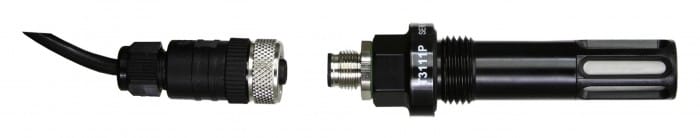

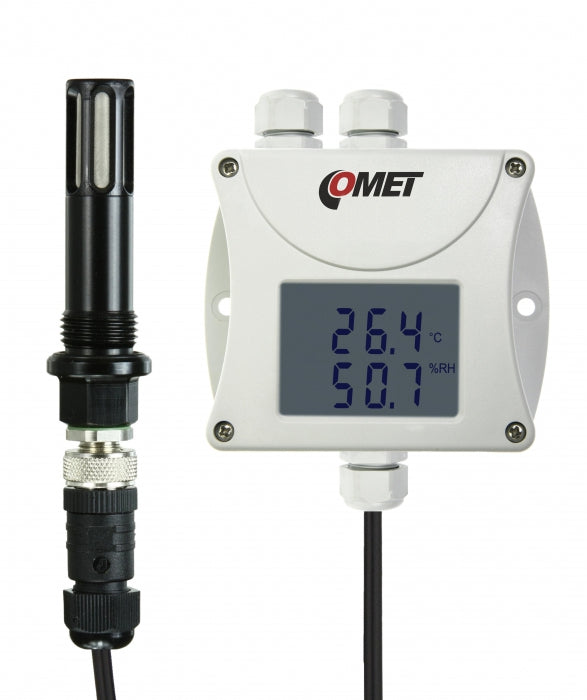

Humidity and temperature transmitter with a T+RH probe made from hard anodized duralumin designed for compressed air applications It measures temperature and relative humidity with additional calculations for dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy The device is compatible for both outdoor and indoor use, provided with a 4-meter cable that connects to the probe.

Features and Benefits:

    •Temperature sensor with a measuring range of -30 to +105 °C and accuracy of ±0.4 °C.

    •Humidity sensor measures from 0 to 100 % RH with an accuracy of ±2.5 % RH at 23 °C.

    •Dew point calculation with multiple accuracy levels depending on the temperature.

    •Supports communication protocols including ModBus RTU, ARION, and Advantech ADAM.

    •Operating temperature range from -30 to +80 °C.

    •Robust design with an IP65 protection class for electronics and IP40 for sensors.

    •Power supply range from 9-30 Vdc.

    •Dimensions of 88.5 x 114 x 39.5 mm, external probe length/diameter of 88/18 mm.

    •Approximately 210 g weight.

    •Three-year warranty provided.

Specifications:

 Temperature Sensor Measuring Range -30 to +105 °C
 Temperature Sensor Accuracy ±0.4 °C
 Temperature Sensor Resolution 0.1 °C
 Humidity Sensor Measuring Range 0 to 100 % RH
 Humidity Sensor Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5°C for +10°C and higher, ±2.0°C for 0°C, ±3.0°C for -10°C, ±6.0°C for -20°C at ambient +25°C
 Dew Point Resolution 0.1 °C
 Measuring the Moisture of Compressed Air Range up to 25 bars
 Air Flow Velocity up to 25 m/s at 1 bar pressure, 1 m/s at 25 bar pressure
 Output RS485
 Channels 1x connectable temperature+humidity probe
 Range of Humidity Sensor Temperature Compensation all temperature range
 Available Temperature Units degrees Celsius, degrees Fahrenheit
 Power 9-30 Vdc
 Protection Class IP65 electronics; IP40 sensors
 External Probe Cable Length 4 meters

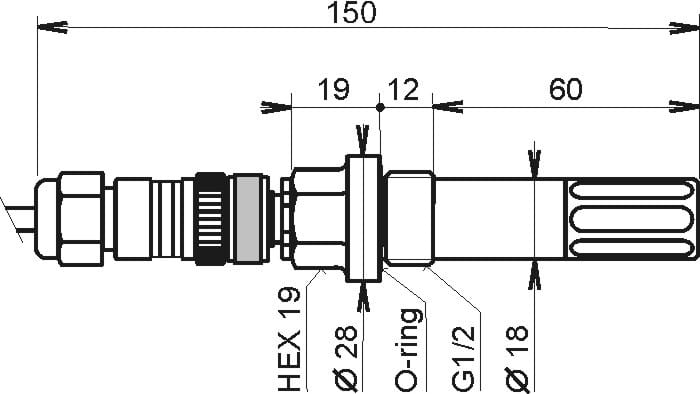

 Dimensions 88.5 x 114 x 39.5 mm; length/diameter of external probe 88/18 mm
