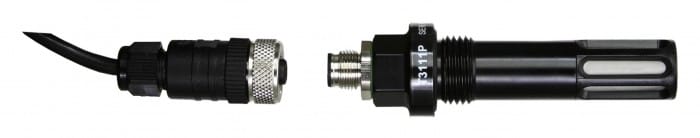

Compressed air RH+T+Tdp sensor with 4 meters cable

Compressed air RH+T+Tdp sensor with 4 meters cable

SKU: T0211P-4   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

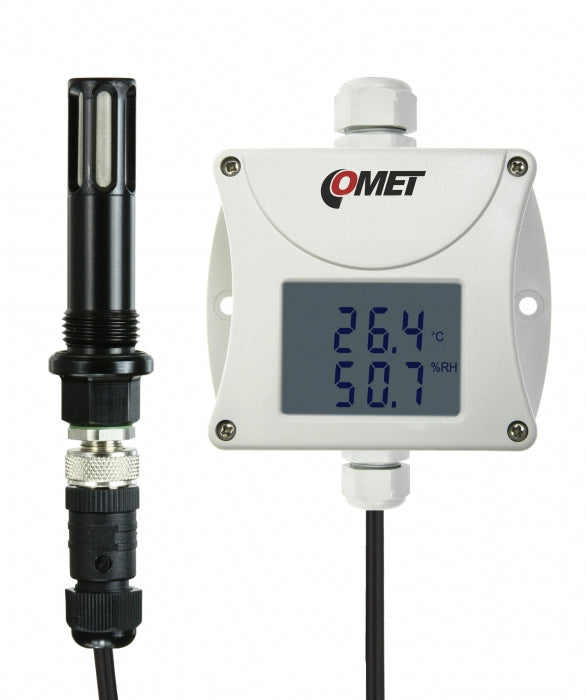

Humidity and temperature transmitter with a T+RH probe made from hard anodized duralumin, designed for use with compressed air up to 25 bars, suitable for indoor and outdoor applications It measures humidity and temperature while converting values to various interpretations, including dew point temperature and absolute humidity The device comes equipped with a T+RH probe that features a 4-meter cable, allowing for flexible installation.

Features and Benefits:

    •Compatible with compressed air up to 25 bars.

    •Measuring capability for temperature and relative humidity.

    •Additional dew point temperature and other humidity interpretations.

    •User adjustable output configuration from PC.

Specifications:

 Temperature Measurement Range -30 to +105 °C
 Temperature Accuracy ±0.4 °C
 Temperature Resolution 0.1 °C
 Humidity Measurement Range 0 to 100 % RH
 Humidity Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution 0.1 % RH
 Dew Point Measurement Range -60 to +80 °C
 Dew Point Temperature Accuracy ±1.5°C (>= +10°C), ±2.0°C (0°C), ±3.0°C (-10°C), ±6.0°C (-20°C)
 Dew Point Resolution 0.1 °C
 Compressed Air Measuring Range up to 25 bars
 Air Flow Velocity up to 25 m/s at 1 bar
 Operating Temperature -30 to +80 °C
 Channels 1x connectable temperature+humidity probe
 Output 0 - 10 V
 Power Supply 15-30 Vdc; 24 Vac
 Protection Class IP65 electronics; IP40 sensors

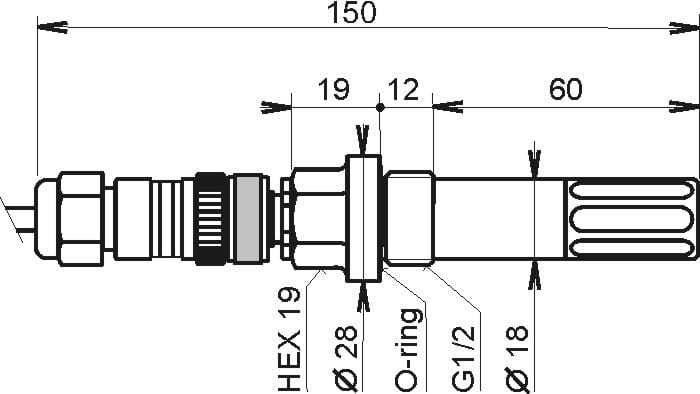

 Dimensions 88.5 x 114 x 39.5 mm; external probe length/diameter 88/18 mm
 External Probe Cable Length 4 meters
