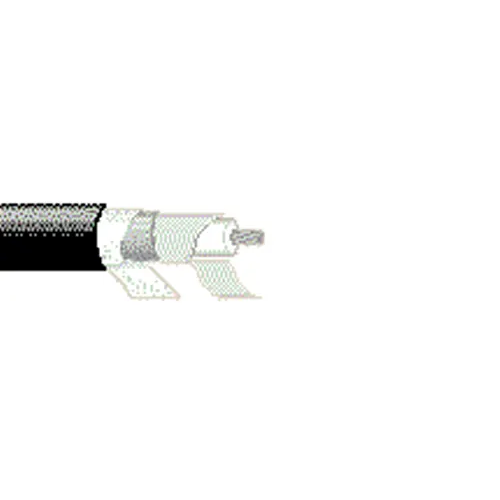

Belden 9778 20 AWG 1 Conductor 26x34 Stranding Tinned Copper 300V Microphone Cable

Description:-

20 AWG stranded (26x34) high-conductivity TC conductor, EPDM rubber insulation, conductive textile (100%) plus TC spiral shields (75% coverage), paper tape, CPE jacket.

Insulation:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nominal Diameter: 0.117 in

Outer Shield:-

• Layer: 1
• Shield Type: Spiral Serve / Screen
• Material: Textile (Conductive)
• Coverage [%]: 100%

• Layer: 2
• Shield Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage [%]: 75%

• Layer: 3
• Shield Type: Tape
• Coverage [%]: 100%

Outer Jacket:-

• Material: Neoprene
• Nom. Diameter: 0.235 in
• Separator Material: Paper Tape

Standards:-

• Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 40 Ohm
• Operating Temperature Range: -30°C To +60°C

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 26x34
• Nominal Diameter: 0.037 in
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Part Number: 9778
