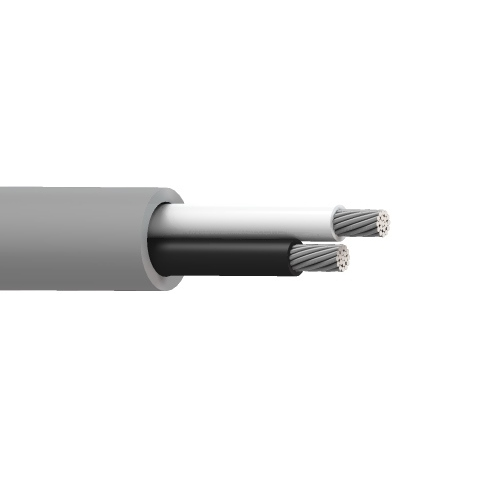

Belden 9740MN 18 AWG 2 Conductor 41x34 Stranding Tinned Copper 300V Multi-Pair Cable

Description:

SpaceMaker, 2 Conductor 18 AWG (41x34) Tinned Copper, PO Insulation, PVC Outer Jacket, AWM 2937.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.067 in (1.7 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.166 in
• Overall Cable Diameter (Nominal): 0.166 in

Standards:

• Voltage Rating: 300 V (CMG)
• Operating Temperature: -20°C To +80°C

Specifications:

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 41x34
• Conductor Material: TC - Tinned Copper
• Part Number: 9740MN
