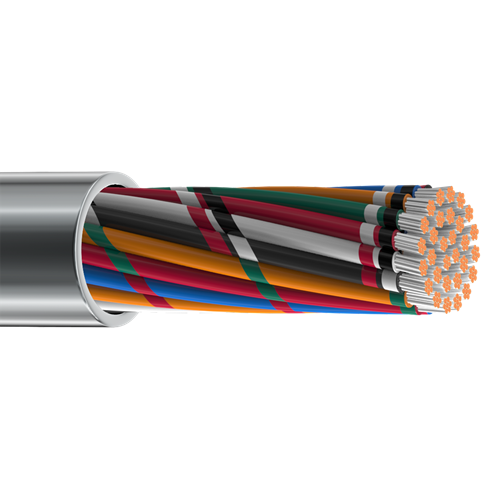

Belden 9432 22 AWG 30 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 30 Conductor 22 AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.400 in (10.2 mm)
• Overall Cable Diameter (Nominal): 0.400 in (10.2 mm)

Standards:

• Operating Temperature: -20°C to +80°C
• Voltage Rating: 300 V (CMG), 150 V (UL AWM 2576)

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
