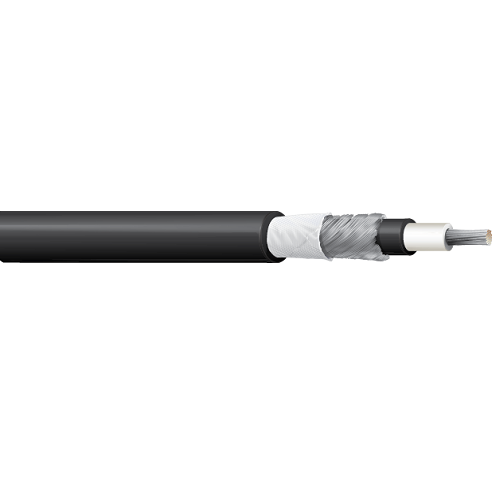

Belden 9395 18 AWG 1 Conductor 41x34 Stranding Tinned Copper 300V Microphone Cable

Description:-

18 AWG stranded (41x34) high-conductivity TC conductor, EPDM rubber insulation, conductive textile (100%) plus TC spiral shields (70% coverage), paper tape, CPE jacket.

Insulation:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Insulation Diameter: 0.137 in (3.48 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Spiral Serve / Screen
• Material: Textile (Conductive)
• Coverage [%]: 100%

• Layer: 2
• Shield Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage [%]: 70%

• Layer: 3
• Shield Type: Tape
• Coverage [%]: 100%
• Conductive Dacron Tape

Outer Jacket:-

• Material: CPE - Chlorinated Polyethylene
• Nom. Diameter: 0.235 in (5.97 mm)
• Overall Cable Diameter (Nominal): 0.235 in (5.97 mm)

Standards:-

• Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 35 Ohm
• Operating Temperature Range: -30°C To +60°C

Applications:-

• Microphone, Musical Instrument

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 41x34
• Nominal Diameter: 0.047 in
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Part Number: 9395
