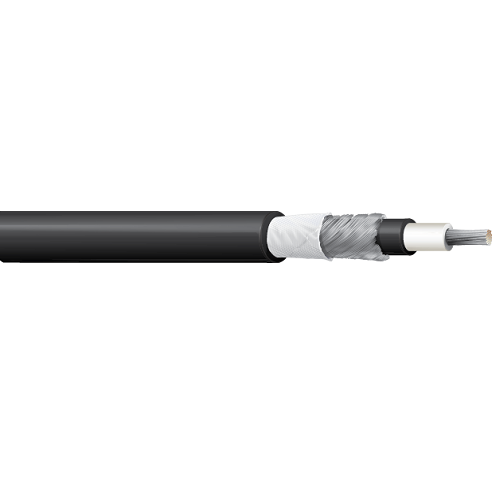

Belden 9394 20 AWG 1 Conductor 27x34 Stranding Tinned Copper 300V Microphone Cable

Description:-

20 AWG stranded (27x34) high-conductivity TC conductor, EPDM rubber insulation, conductive textile (100%) plus TC spiral shields (95% coverage), paper tape, CPE jacket.

Insulation:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nominal Diameter: 0.097 in

Outer Shield:-

• Layer: 1
• Shield Type: Spiral Serve / Screen
• Material: Textile (Conductive)
• Coverage [%]: 100%

• Layer: 2
• Shield Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage [%]: 95%

• Layer: 3
• Shield Type: Tape
• Coverage [%]: 100%

Outer Jacket:-

• Material: CPE - Chlorinated Polyethylene
• Nom. Diameter: 0.19 in
• Nominal Wall Thickness: 0.033 in
• Separator Material: Paper Tape

Standards:-

• Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 34 Ohm
• Operating Temperature Range: -30°C To +60°C

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 27x34
• Nominal Diameter: 0.037 in
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Part Number: 9394
