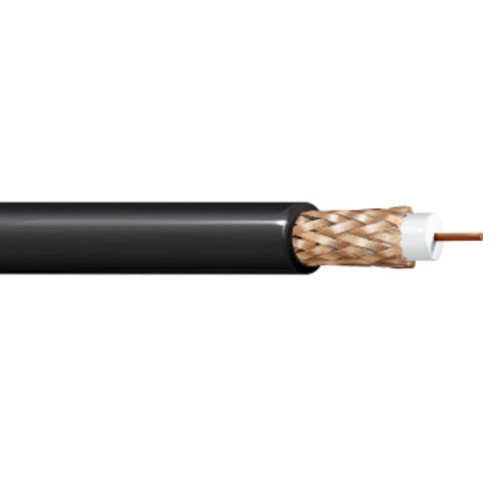

Belden 9251 13 AWG 1 Conductor 7x21 Stranding Bare Copper 52 Ohm Coax Cable

Description:-

RG-8/U type, 13 AWG stranded (7x21) 0.085" bare copper conductor, polyethylene insulation, bare copper braid shield (95% coverage), non-contaminating PVC jacket.

Insulation:-

• Material: PE - Polyethylene
• Nominal Diameter: 0.285 in
• Nominal Wall Thickness: 0.285 in

Outer Shield:-

• Layer: 1
• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.405 in

Standards:-

• Nominal Characteristic Impedance: 52 Ohms
• Operating Temperature Range: -40°C To +80°C

Specifications:-

• Size (AWG): 13
• No. of Conductor: 1
• Stranding: 7x21
• Nominal Diameter: 0.085 in
• Conductor Material: BC - Bare Copper
• Part Number: 9251
