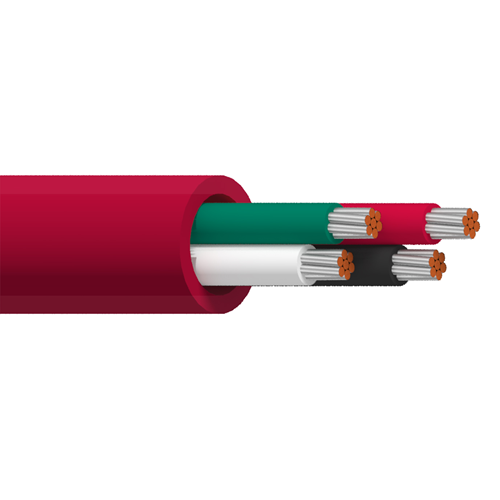

Belden 88444 22 AWG 4 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

High Temperature Electronic, 4 Conductor 22 AWG (7x30) Tinned Copper, FEP Insulation, FEP Outer Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.042 in (1.1 mm)

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.131 in (3.33 mm)
• Overall Cable Diameter (Nominal): 0.131 in (3.33 mm)

Standards:

• Voltage Rating: 300 V (CMP)
• Operating Temperature: -20°C to +150°C

Applications:

• extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
