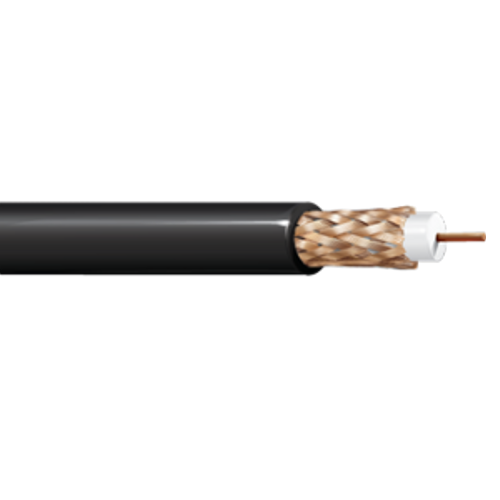

Belden 88241 23 AWG 1 Conductor Solid Bare Copper Covered Steel 300V Analog Video Cable

Description:

23 AWG Solid 0.023" bare copper-covered steel conductor, plenum, FEP insulation, bare copper braid shield (95% coverage), FEP jacket.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Insulation Diameter: 0.132 in (3.35 mm)

Outer Shield:

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.190 in (4.83 mm)
• Overall Cable Diameter (Nominal): 0.190 in (4.83 mm)

Standards:

• Voltage Rating: 1700 V RMS
• Operating Temperature: -70°C To +200°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Standard analog video

Specifications:

• Size (AWG): 23
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 59
• Nom. Diameter: 0.023 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 88241
