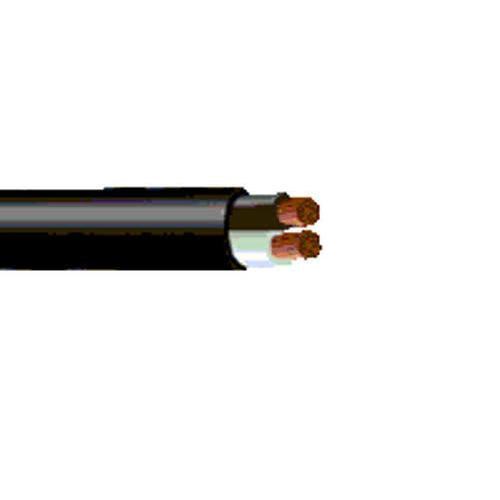

Belden 8808WB 8 AWG 2 Conductor 19x22 Stranding Bare Copper 600V Speaker Cable

Description:-

2 Conductor 8 AWG stranded (19x21) bare copper conductors, PVC/nylon insulated, unshielded, waterblock tape, PVC jacket, rip cord.

Insulation:-

Element: Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.034 in (0.86 mm)
• Nom. Insulation Diameter: 0.210 in (5.33 mm)

Element: Conductor(s)
• Material: Nylon
• Nom. Thickness: 0.006 in (0.15 mm)
• Nom. Insulation Diameter: 0.222 in (5.64 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.602 in
• Overall Cable Diameter (Nominal): 0.602 in
• Separator: Waterblocking Tape

Standards:-

• UL Voltage Rating: 600 V (TC), 150 V (NPLF)
• Operating Temperature Range: -30°C To +75°C Wet; -30°C To +90°C Dry

Applications:-

• Auditorium, Stadium, Race Track, Church, Temple, Synagogue, Place Of Assembly, Casino, Sound

Specifications:-

• Size (AWG): 8
• No. of Conductor: 2
• Stranding: 19x22
• Conductor Material: BC - Bare Copper
• Part Number: 8808WB
