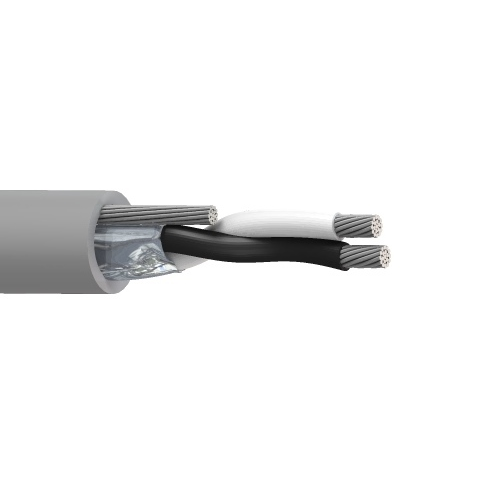

Belden 8761MN 22 AWG 2 Conductor 19x34 Stranding Tinned Copper 300V SpaceMaker Cable

Description:

SpaceMaker, 2 Conductor 22 AWG (19x34) Tinned Copper, PO Insulation, Overall Beldfoil Shield, PVC Outer Jacket, AWM 2937

Insulation:

• Element: Pair(s)
• Material: PP - Polypropylene
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (19x36) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.135 in
• Overall Cable Diameter (Nominal): 0.135 in

Standards:

• Impedance: 51 Ohms
• Voltage Rating: 300 V.
• Operating Temperature: -20°C to +80°C.
