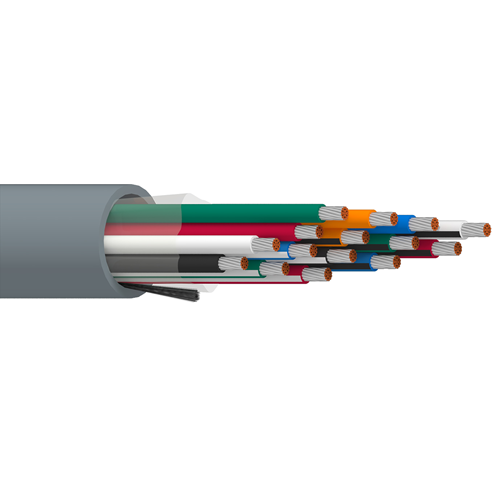

Belden 8623 16 AWG 15 Conductor 19x29 Stranding Tinned Copper 600V Electronic Cable

Description:

Electronic, 15 Conductor 16 AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.031 in (0.79 mm)
• Nom. Insulation Diameter: 0.121 in (3.07 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.060 in (1.5 mm)
• Nom. Diameter: 0.694 in (17.6 mm)
• Overall Cable Diameter (Nominal): 0.694 in (17.6 mm)
• PP - Polypropylene Tape

Standards:

• Voltage Rating: 600 V.
• Operating Temperature: -30°C to +75°C

Applications:

• up to 600V analog signals ; up to 600V control ; line level audio; voice communications; panel wiring
