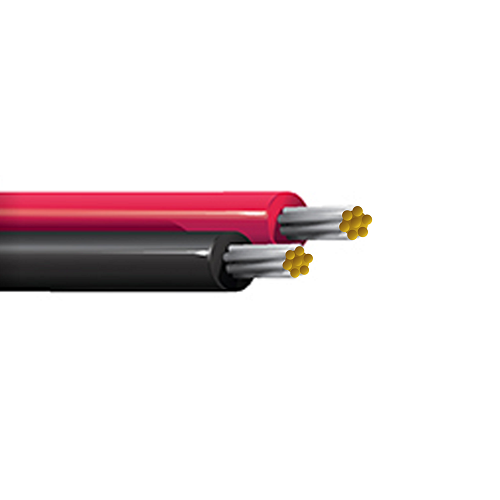

Belden 8470 16 AWG 2 Conductor 19x29 Stranding Tinned Copper 300V Speaker Cable

Description:-

Speaker Cable, 2 Conductor 16 AWG (19 x 29) Tinned Copper (High conductivity), PVC Insulation, Unjacketed.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.105 in (2.67 mm)

Outer Jacket:-

• Material: No Jacket
• Nom. Diameter: 0.210 in (5.33 mm)
• Overall Cable Diameter (Nominal): 0.210 in (5.33 mm)

Standards:-

• Voltage Rating: 300 V
• Operating Temperature Range: -30°C to +105°C

Applications:-

• Indoor Speaker Cable

Specifications:-

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Part Number: 8470
