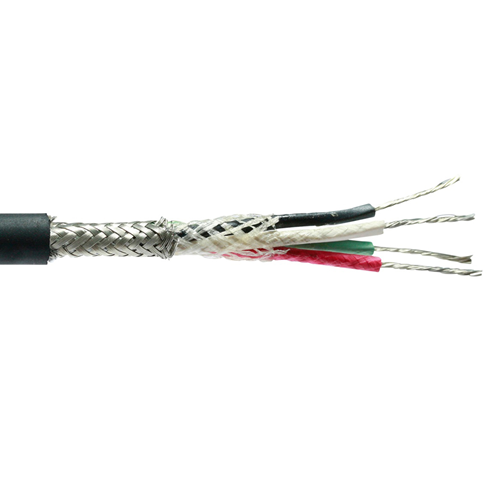

Belden 8425 20 AWG 5 Conductor 26x34 Stranding Tinned Copper 600 V Microphone Cable

Description:

Microphone Cable, 5 Conductor 20 AWG (26 x 34) Tinned Copper (High Conductivity), EPDM Insulation, Rayon Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket, Flexible.

Insulation:

• Element: Conductor(s)
• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.083 in (2.1 mm)

Outer Shield:

• Shield Type Braid: Rayon Material, Coverage 85%

• Shield Type Braid: Tinned Copper (TC) Material, Coverage 85%

• 85% coverage tinned copper braid shield

Outer Jacket:

• Separator: Cotton Serve
• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.318 in (8.08 mm)
• Overall Cable Diameter (Nominal): 0.318 in (8.08 mm)

Standards:

• Voltage Rating: 600 V RMS.
• Impedance: 52 Ohm.
• Operating Temperature: -50°C to +90°C

Applications:

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio
