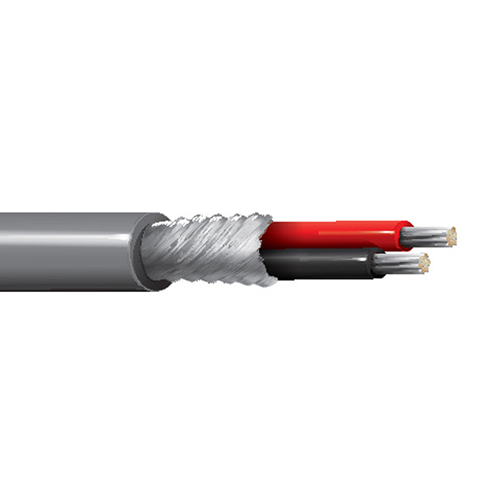

Belden 8416 25 AWG 2 Conductor 7x33 Stranding Audio And Instrumentation Cable

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 8416 25 AWG 2 Conductor 7x33 Stranding Audio And Instrumentation Cable

Description:

Dual Channel, 25 AWG stranded (7x33) Tinned Copper/Tinned Copper Covered Steel conductor, polyethylene insulation, individual TC spiral wrapped shield (90% coverage), PVC jacket, polarity rib on red conductor.

Insulation:

• Material: PE - Polyethylene
• Nominal Diameter: 0.058 in

Inner Shield:

• Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage [%]: 90%

Outer Shield:

• Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage [%]: 90%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.106 x 0.213 in

Standards:

• Nominal Characteristic Impedance: 44 Ohm.
• Operating Temperature Range: -20°C to +80°C.
