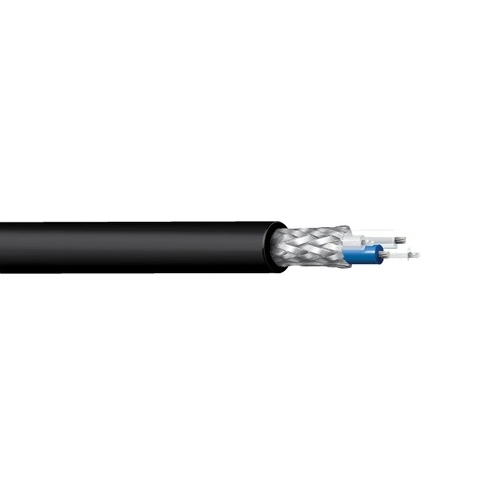

Belden 8412P 20 AWG 2 Conductor 7x28 Stranding Tinned Copper 300V Plenum Microphone Cable

Description:-

20 AWG, 2 stranded (7x28) high-conductivity TC conductors, FEP Teflon insulation, TC braid shield (85%), FEP Teflon jacket.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Insulation Diameter: 0.074 in (1.9 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage [%]: 90%

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.198 in (5.03 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -70°C to +200°C

Applications:-

• Audio, Analog Audio, Microphone

Specifications:-

• Size (AWG): 20
• No. of Conductor: 2
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 8412P
