Belden 8241F 22 AWG 1 Conductor 7x30 Stranding Bare Copper 300V Analog Video Cable

Description:

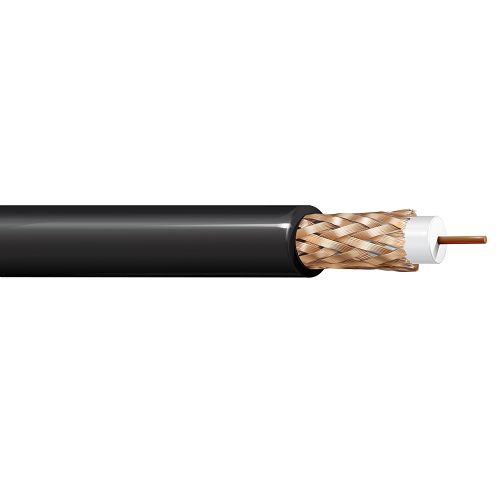

RG-59/U, 22 AWG stranded (7x30) 0.030" bare copper conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.146 in

Outer Shield:

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.241 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -30°C To +60°C
• Nom. Characteristic Impedance: 75 Ohm

Specifications:

• Size (AWG): 22
• No. of Conductor: 1
• Stranding: 7x30
• Nom. Diameter: 0.03 in
• Conductor Material: BC - Bare Copper
• Part Number: 8241F
