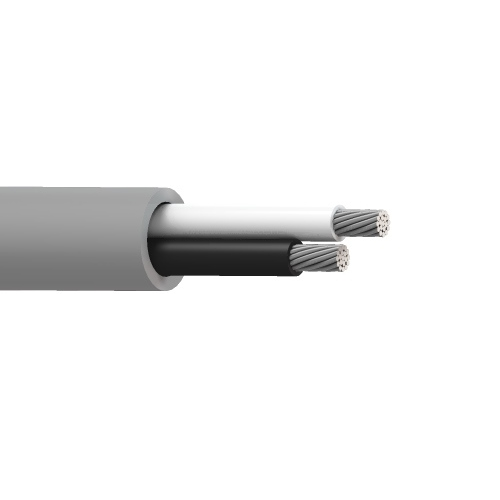

Belden 8205MN 20 AWG 2 Conductor 26x34 Stranding Tinned Copper 300V Multi-Pair Cable

Description:

SpaceMaker, 2 Conductor 20 AWG (26x34) Tinned Copper, PO Insulation, PVC Outer Jacket, AWM 2937.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.057 in (1.4 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.146 in
• Overall Cable Diameter (Nominal): 0.146 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +80°C

Specifications:

• Size (AWG): 20
• No. of Conductor: 2
• Stranding: 26x34
• Conductor Material: TC - Tinned Copper
• Part Number: 8205MN
