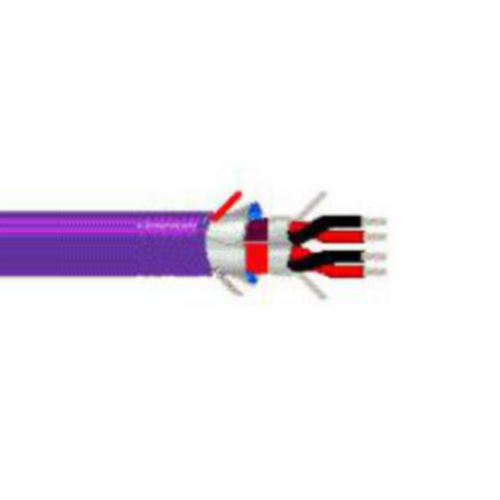

Belden 7891A 26 AWG 2 Pair 7x34 Stranding Tinned Copper 110 Ohm Audio Snake Cable

Description:-

Digital Audio Snake Cable, CM-Rated, 2-26 AWG tinned copper pairs, Datalene insulation, individually shielded with Beldfoil bonded to numbered/color-coded PVC jackets, so both strip simultaneously, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.054 in (1.4 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Indiv. Foil tapes are bonded to the inner jacket

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter:  0.136 in (3.45 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.343 in

Standards:-

• Nom. Characteristic Impedance: 110 Ohm
• Operating Temperature Range: -30°C To +80°C

Applications:-

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Specifications:-

• Size (AWG): 26
• No. of Pair: 2
• Stranding: 7x34
• Conductor Material: TC - Tinned Copper
• Part Number: 7891A
