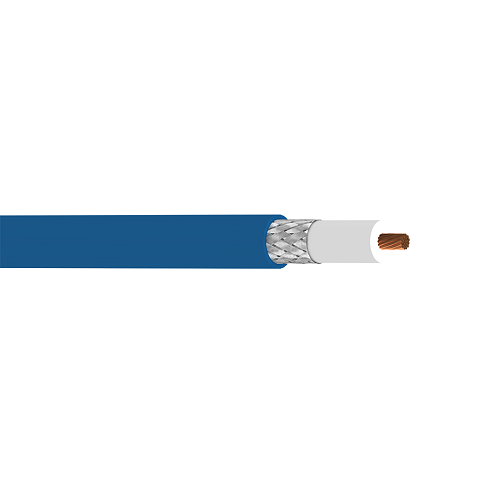

Belden 7502A 22 AWG 1 Conductor 19x34 Stranding Bare Copper 75 Ohm Coax Cable

Description:-

MachFlex for High Flex, 1 Conductor 22 AWG (19x34) Bare Copper, PO Insulation, Overall Tinned Copper Braid (95%) Shield, PVC Outer Jacket, AWM 1354.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.146 in

Outer Shield:-

• Layer: 1
• Shield Type: French Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Belflex
• Nominal Diameter: 0.242 in

Standards:-

• UL Voltage Rating: 30 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +80°C

Specifications:-

• Size (AWG): 22
• No. of Conductor: 1
• Stranding: 19x34
• Nominal Diameter: 0.031 in
• Conductor Material: BC - Bare Copper
• Part Number: 7502A
