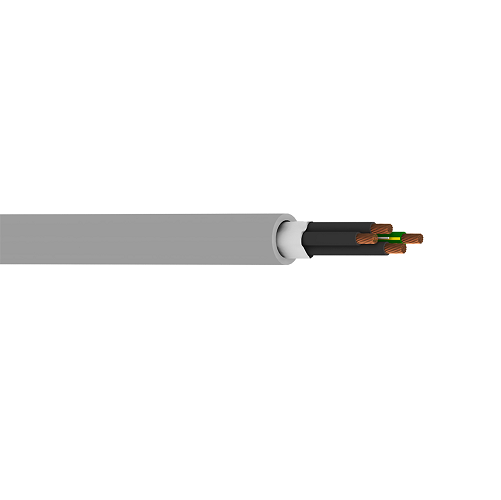

Belden 7453W 6 AWG 3 Conductor 1 Ground Wire 259x30 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 3+1 Conductor 6 AWG (259(7x37)x30) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

Element: Conductor(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Insulation Diameter: 0.276 in (7.01 mm)

Element: Ground Wire
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Insulation Diameter: 0.276 in (7.01 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.085 in (2.2 mm)
• Nom. Diameter: 0.875 in
• Overall Cable Diameter (Nominal): 0.875 in
• Separator: non-Woven Tape

Standards:-

• Voltage Rating: 1000 V (WTTC), 600 V (TC-ER)
• Operating Temperature Range: -40°C To +105°C

Applications:-

• Robotics, Robot, Continuous Flex

Specifications:-

Element: Conductor(s)
• Size (AWG): 6
• No. of Conductor: 3
• Stranding: 259x30
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 6
• No. of Ground Wire: 1
• Stranding: 259x30
• Conductor Material: BC - Bare Copper
• Part Number: 7453W
