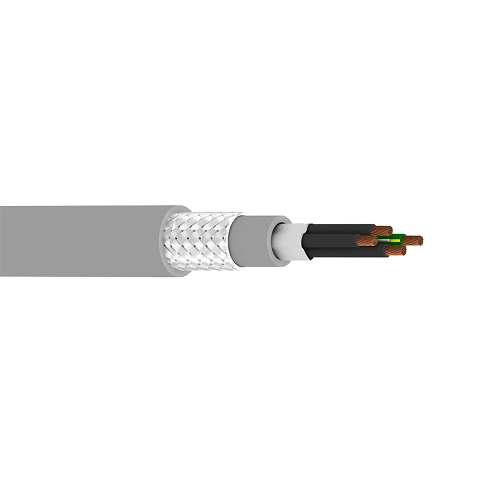

Belden 7450WS 8 AWG 3 Conductor 1 Ground Wire 168x30 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 3+1 Conductor 8 AWG (168(7x24)x30) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid (85%) Shield, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

Element: Conductor(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Insulation Diameter: 0.247 in (6.27 mm)

Element: Ground Wire
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Insulation Diameter: 0.247 in (6.27 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 85%

Inner Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.712 in (18.1 mm)
• Separator: non-Woven Tape

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.085 in (2.2 mm)
• Nom. Diameter: 0.87 in (22 mm)
• Overall Cable Diameter (Nominal): 0.876 in (22.3 mm)

Standards:-

• Voltage Rating: 1000 V (WTTC), 600 V (TC-ER)

Applications:-

• Robotics, Robot, Continuous Flex

Specifications:-

Element: Conductor(s)
• Size (AWG): 8
• No. of Conductor: 3
• Stranding: 168x30
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 8
• No. of Ground Wire: 1
• Stranding: 168x30
• Conductor Material: BC - Bare Copper
• Part Number: 7450WS
