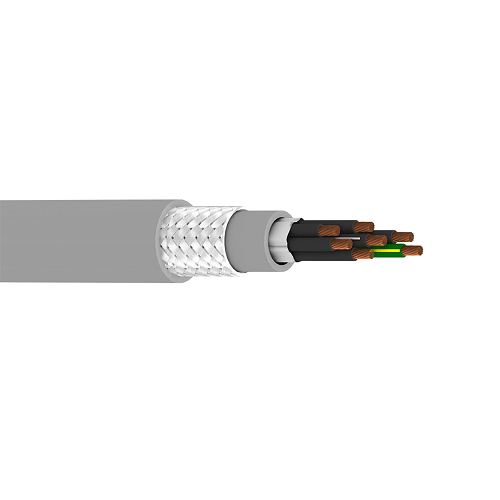

Belden 7438WS 14 AWG 6 Conductor 1 Ground Wire 41x30 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 6+1G Conductor 14 AWG (41x30) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid (85%) Shield, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

Element: Conductor(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.117 in (2.97 mm)

Element: Ground Wire
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.117 in (2.97 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 85%

Inner Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.25 in (6.4 mm)
• Nom. Diameter: 0.444 in (11.3 mm)
• Separator: non-Woven Tape

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.598 in
• Overall Cable Diameter (Nominal): 0.598 in

Standards:-

• Voltage Rating: 1000 V (WTTC), 600 V (TC-ER)

Applications:-

• Robotics, Robot, Continuous Flex

Specifications:-

Element: Conductor(s)
• Size (AWG): 14
• No. of Conductor: 6
• Stranding: 41x30
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 14
• No. of Ground Wire: 1
• Stranding: 41x30
• Conductor Material: BC - Bare Copper
• Part Number: 7438WS
