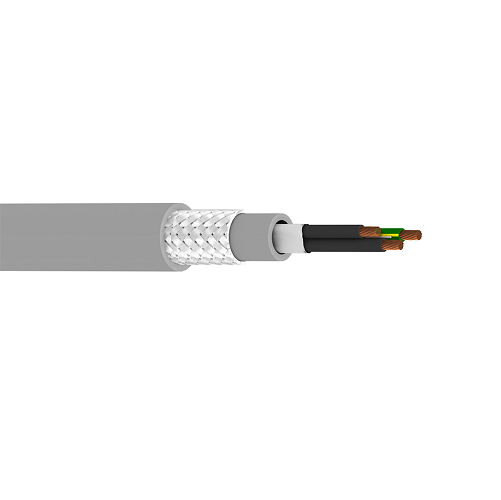

Belden 7401WS 20 AWG 2 Conductor 1 Ground Wire 19x32 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 2+1G Conductor 20 AWG (19x32) Bare Copper, PVC Insulation, Overall Tinned Copper Braid (85%) Shield, TPE Outer Jacket, PLTC.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.015 in

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 85%
• Nominal Diameter: 0.219 in

Inner Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Diameter: 0.197 in
•  Nominal Wall Thickness: 0.025 in

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Diameter: 0.303 in
• Nominal Wall Thickness: 0.042 in

Standards:-

• Voltage Rating: 600 V
• Operating Temperature Range: -40°C (-5°C Flexing) To +90°C

Specifications:-

Element: Conductor(s)
• Size (AWG): 20
• No. of Conductor: 2
• Stranding: 19x32
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 20
• No. of Ground Wire: 1
• Stranding: 19x32
• Conductor Material: BC - Bare Copper
• Part Number: 7401WS
