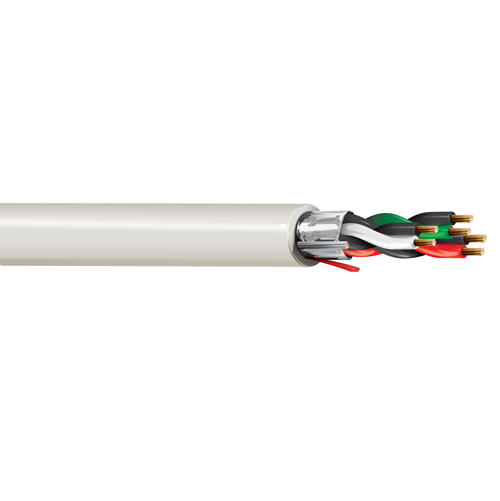

Belden 5342FE 18 AWG 3 Pair 7x26 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Riser-CMR, 3-18 AWG stranded bare copper pairs with polyolefin insulation, Beldfoil shield, and PVC jacket with ripcord.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.0085 in (0.22 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.267 in (6.78 mm)
• Overall Cable Diameter (Nominal): 0.267 in (6.78 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +105°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Specifications:

• Size (AWG): 18
• No. of Pair: 3
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 5342FE
