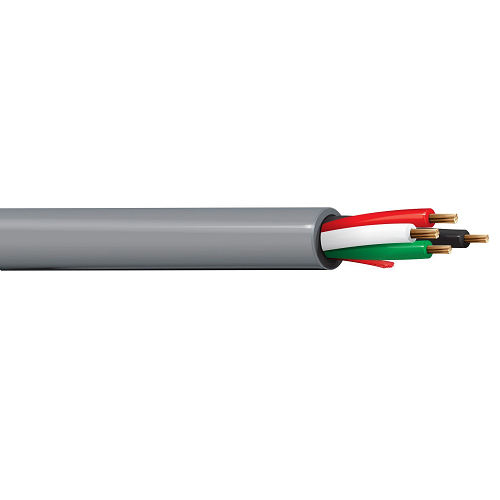

Belden 5102UP 14 AWG 4 Conductor 42x30 Stranding Bare Copper 300V Audio Cable

Description:-

Audio Cable, Rated-CL3, 4-14 AWG, highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.02 in (0.51 mm)
• Nom. Insulation Diameter: 0.115 in (2.92 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Diameter:  0.313 in
• Overall Cable Diameter (Nominal): 0.313 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Specifications:-

• Size (AWG): 14
• No. of Conductor: 4
• Stranding: 42x30
• Conductor Material: BC - Bare Copper
• Part Number: 5102UP
